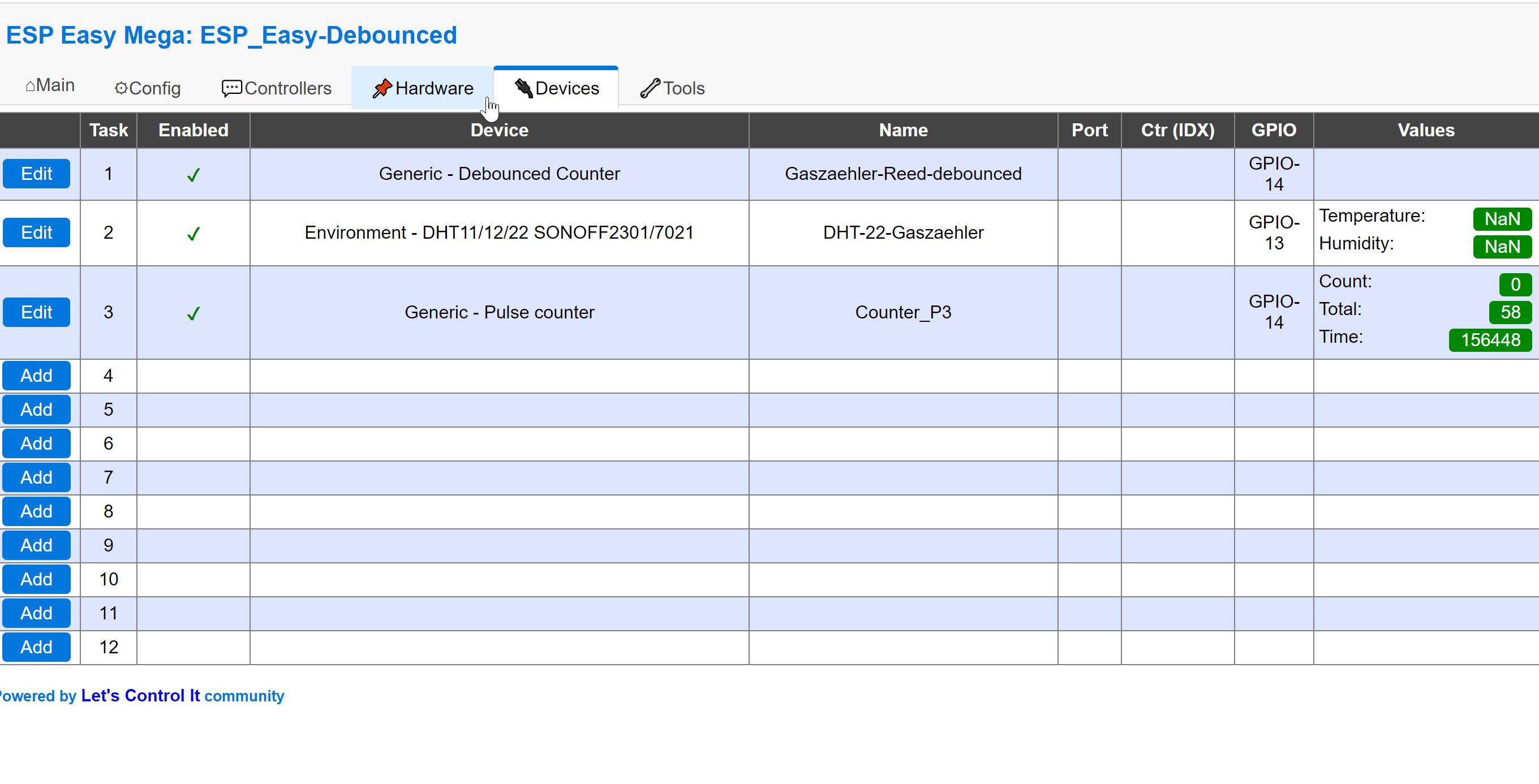

i inspected the code and indeed the code to display delta total and time needs to be changed.
i changed it but i am not impressed with this debounced counter.
if i select a debounce time of 800ms and make 2 fast contacts it still reads more than 2 counts so it does not supress the extra bounces.
also it took a long time before it stared to react to pulses
the generic pulsecounter reacts instantly so i suspect other code needs to be changed as well
it also seems to count 2 pulses no matter what you select(rising, falling, change)
here is the complete code for the _P222_DebouncedCounter.ino file
Code: Select all
#ifdef USES_P222
//#######################################################################################################
//#################################### Plugin 222: Pulse ###############################################
//#######################################################################################################
#define PLUGIN_222
#define PLUGIN_ID_222 222
#define PLUGIN_NAME_222 "Generic - Debounced Counter"
#define PLUGIN_VALUENAME1_222 "Count"
#define PLUGIN_VALUENAME2_222 "Total"
#define PLUGIN_VALUENAME3_222 "Time"
void Plugin_222_pulse_interrupt1() ICACHE_RAM_ATTR;
void Plugin_222_pulse_interrupt2() ICACHE_RAM_ATTR;
void Plugin_222_pulse_interrupt3() ICACHE_RAM_ATTR;
void Plugin_222_pulse_interrupt4() ICACHE_RAM_ATTR;
//this takes 20 bytes of IRAM per handler
// void Plugin_222_pulse_interrupt5() ICACHE_RAM_ATTR;
// void Plugin_222_pulse_interrupt6() ICACHE_RAM_ATTR;
// void Plugin_222_pulse_interrupt7() ICACHE_RAM_ATTR;
// void Plugin_222_pulse_interrupt8() ICACHE_RAM_ATTR;
unsigned long Plugin_222_pulseCounter[TASKS_MAX];
unsigned long Plugin_222_pulseTotalCounter[TASKS_MAX];
unsigned long Plugin_222_pulseTime[TASKS_MAX];
unsigned long Plugin_222_pulseTimePrevious[TASKS_MAX];
byte Plugin_222_pulsePin[TASKS_MAX];
byte Plugin_222_pulseMode[TASKS_MAX];
byte Plugin_222_ct0[TASKS_MAX];
byte Plugin_222_ct1[TASKS_MAX];
byte Plugin_222_prescaler[TASKS_MAX];
byte Plugin_222_prescaler_cnt[TASKS_MAX];
byte Plugin_222_signal_state[TASKS_MAX];
byte Plugin_222_signal_falling[TASKS_MAX];
byte Plugin_222_signal_rising[TASKS_MAX];
boolean Plugin_222(byte function, struct EventStruct *event, String& string)
{
boolean success = false;
switch (function)
{
case PLUGIN_TEN_PER_SECOND:
{
if ( (Plugin_222_pulseMode[event->TaskIndex] == FALLING
|| Plugin_222_pulseMode[event->TaskIndex] == CHANGE )
&& Plugin_222_signal_falling[event->TaskIndex])
{
Plugin_222_signal_falling[event->TaskIndex]=0;
Plugin_222_pulseCounter[event->TaskIndex]++;
Plugin_222_pulseTotalCounter[event->TaskIndex]++;
Plugin_222_pulseTime[event->TaskIndex] = timePassedSince(Plugin_222_pulseTimePrevious[event->TaskIndex]);;
Plugin_222_pulseTimePrevious[event->TaskIndex]=millis();
}
if ( (Plugin_222_pulseMode[event->TaskIndex] == RISING
|| Plugin_222_pulseMode[event->TaskIndex] == CHANGE )
&& Plugin_222_signal_rising[event->TaskIndex])
{
Plugin_222_signal_rising[event->TaskIndex]=0;
Plugin_222_pulseCounter[event->TaskIndex]++;
Plugin_222_pulseTotalCounter[event->TaskIndex]++;
Plugin_222_pulseTime[event->TaskIndex] = timePassedSince(Plugin_222_pulseTimePrevious[event->TaskIndex]);;
Plugin_222_pulseTimePrevious[event->TaskIndex]=millis();
}
break;
}
case PLUGIN_FIFTY_PER_SECOND:
{
if ( Plugin_222_prescaler_cnt[event->TaskIndex]++ % Plugin_222_prescaler[event->TaskIndex] == 0 ) // prescale value reacheed?
{
// Credit: https://www.mikrocontroller.net/topic/tasten-entprellen-bulletproof
byte i = Plugin_222_signal_state[event->TaskIndex] ^ ~digitalRead(Plugin_222_pulsePin[event->TaskIndex]); // key changed ?
Plugin_222_ct0[event->TaskIndex] = ~( Plugin_222_ct0[event->TaskIndex] & i ); // reset or count ct0
Plugin_222_ct1[event->TaskIndex] = Plugin_222_ct0[event->TaskIndex] ^ (Plugin_222_ct1[event->TaskIndex] & i); // reset or count ct1
i &= Plugin_222_ct0[event->TaskIndex] & Plugin_222_ct1[event->TaskIndex]; // count until roll over
Plugin_222_signal_state[event->TaskIndex] ^= i; // then toggle debounced state
Plugin_222_signal_falling[event->TaskIndex] |= Plugin_222_signal_state[event->TaskIndex] & i; // 0->1: key pressing detect
Plugin_222_signal_rising[event->TaskIndex] |= ~Plugin_222_signal_state[event->TaskIndex] & i; // 1->0: key release detect
}
break;
}
case PLUGIN_DEVICE_ADD:
{
Device[++deviceCount].Number = PLUGIN_ID_222;
Device[deviceCount].Type = DEVICE_TYPE_SINGLE;
Device[deviceCount].VType = SENSOR_TYPE_SINGLE;
Device[deviceCount].Ports = 0;
Device[deviceCount].PullUpOption = false;
Device[deviceCount].InverseLogicOption = false;
Device[deviceCount].FormulaOption = true;
Device[deviceCount].ValueCount = 3;
Device[deviceCount].SendDataOption = true;
Device[deviceCount].TimerOption = true;
Device[deviceCount].GlobalSyncOption = true;
break;
}
case PLUGIN_GET_DEVICENAME:
{
string = F(PLUGIN_NAME_222);
break;
}
case PLUGIN_GET_DEVICEVALUENAMES:
{
strcpy_P(ExtraTaskSettings.TaskDeviceValueNames[0], PSTR(PLUGIN_VALUENAME1_222));
strcpy_P(ExtraTaskSettings.TaskDeviceValueNames[1], PSTR(PLUGIN_VALUENAME2_222));
strcpy_P(ExtraTaskSettings.TaskDeviceValueNames[2], PSTR(PLUGIN_VALUENAME3_222));
break;
}
case PLUGIN_GET_DEVICEGPIONAMES:
{
event->String1 = formatGpioName_input(F("Pulse"));
break;
}
case PLUGIN_WEBFORM_LOAD:
{
String debounceTime[6];
debounceTime[0] = F("80ms");
debounceTime[1] = F("160ms");
debounceTime[2] = F("240ms");
debounceTime[3] = F("320ms");
debounceTime[4] = F("400ms");
debounceTime[5] = F("800ms");
int debouncePrescale[] = { 1, 2, 3, 4, 5, 10 };
addFormSelector(F("Debounce Time"), F("p222"), 6, debounceTime, debouncePrescale, PCONFIG(0) );
byte choice = PCONFIG(1);
byte choice2 = PCONFIG(2);
String options[3] = { F("Delta"), F("Total"), F("Delta/Total") };
addFormSelector(F("Counter Type"), F("p222_countertype"), 3, options, NULL, choice );
if (choice !=0)
addHtml(F("<span style=\"color:red\">Total count is not persistent!</span>"));
String modeRaise[3];
modeRaise[0] = F("CHANGE");
modeRaise[1] = F("RISING");
modeRaise[2] = F("FALLING");
int modeValues[3];
modeValues[0] = CHANGE;
modeValues[1] = RISING;
modeValues[2] = FALLING;
addFormSelector(F("Mode Type"), F("p222_raisetype"), 3, modeRaise, modeValues, choice2);
success = true;
break;
}
case PLUGIN_WEBFORM_SAVE:
{
PCONFIG(0) = getFormItemInt(F("p222"));
PCONFIG(1) = getFormItemInt(F("p222_countertype"));
PCONFIG(2) = getFormItemInt(F("p222_raisetype"));
success = true;
break;
}
case PLUGIN_WEBFORM_SHOW_VALUES:
{
addHtml(F("<div class=\"div_l\">"));
addHtml(String(ExtraTaskSettings.TaskDeviceValueNames[0]));
addHtml(F(":</div><div class=\"div_r\">"));
addHtml(String(Plugin_003_pulseCounter[event->TaskIndex]));
addHtml(F("</div><div class=\"div_br\"></div><div class=\"div_l\">"));
addHtml(String(ExtraTaskSettings.TaskDeviceValueNames[1]));
addHtml(F(":</div><div class=\"div_r\">"));
addHtml(String(Plugin_003_pulseTotalCounter[event->TaskIndex]));
addHtml(F("</div><div class=\"div_br\"></div><div class=\"div_l\">"));
addHtml(String(ExtraTaskSettings.TaskDeviceValueNames[2]));
addHtml(F(":</div><div class=\"div_r\">"));
addHtml(String(Plugin_003_pulseTime[event->TaskIndex]));
addHtml(F("</div>"));
success = true;
break;
}
case PLUGIN_INIT:
{
String log = F("INIT : Pulse ");
log += CONFIG_PIN1;
log += " as ";
log += PCONFIG(2);
log += " with debouce ";
log += PCONFIG(0);
//log += "*80ms";
addLog(LOG_LEVEL_INFO,log);
pinMode(CONFIG_PIN1, INPUT_PULLUP);
Plugin_222_ct0[event->TaskIndex]=0; // reset debounce counter
Plugin_222_ct1[event->TaskIndex]=0; // dito
Plugin_222_signal_rising[event->TaskIndex]=0; // reset state
Plugin_222_signal_falling[event->TaskIndex]=0; // reset state
Plugin_222_prescaler[event->TaskIndex]=PCONFIG(0); // prescaler preset
Plugin_222_prescaler_cnt[event->TaskIndex]=0; // prescaler counter
Plugin_222_pulsePin[event->TaskIndex]=CONFIG_PIN1; // remember pin
Plugin_222_pulseMode[event->TaskIndex]=PCONFIG(2); // remember edge
Plugin_222_pulseTimePrevious[event->TaskIndex]=millis(); // remmember now
success = true;
break;
}
case PLUGIN_READ:
{
UserVar[event->BaseVarIndex] = Plugin_222_pulseCounter[event->TaskIndex];
UserVar[event->BaseVarIndex+1] = Plugin_222_pulseTotalCounter[event->TaskIndex];
switch (PCONFIG(1)) //Counter type
{
case 0:
{
event->sensorType = SENSOR_TYPE_SINGLE;
UserVar[event->BaseVarIndex] = Plugin_222_pulseCounter[event->TaskIndex];
break;
}
case 1:
{
event->sensorType = SENSOR_TYPE_SINGLE;
UserVar[event->BaseVarIndex+1] = Plugin_222_pulseTotalCounter[event->TaskIndex];
break;
}
case 2:
{
event->sensorType = SENSOR_TYPE_DUAL;
UserVar[event->BaseVarIndex] = Plugin_222_pulseCounter[event->TaskIndex];
UserVar[event->BaseVarIndex+1] = Plugin_222_pulseTotalCounter[event->TaskIndex];
break;
}
}
Plugin_222_pulseCounter[event->TaskIndex] = 0;
success = true;
break;
}
}
return success;
}
#endif // USES_P222
