Tutorial Arduino Firmware Upload

From Let's Control It
Jump to: navigation, search

Note thats it might be easier to use Platformio instead of Arduino IDE, although some people have trouble with platformio. (there are still some bugs in it)

For a platformio tutorial look here: Tutorial building and uploading with platformio

Download and installing the Arduino IDE

Download and install Arduino 1.6.12. from https://www.arduino.cc/en/Main/Software

We will make a clean portable install to avoid conflicts with other arduino installs/libraries etc.

Rename arduino-1.6.12 to arduino-1.6.12P230

Navigate into this folder

Create folder "Portable"

Launch arduino.exe and select preferences

Tutorial Arduino IDE1.png

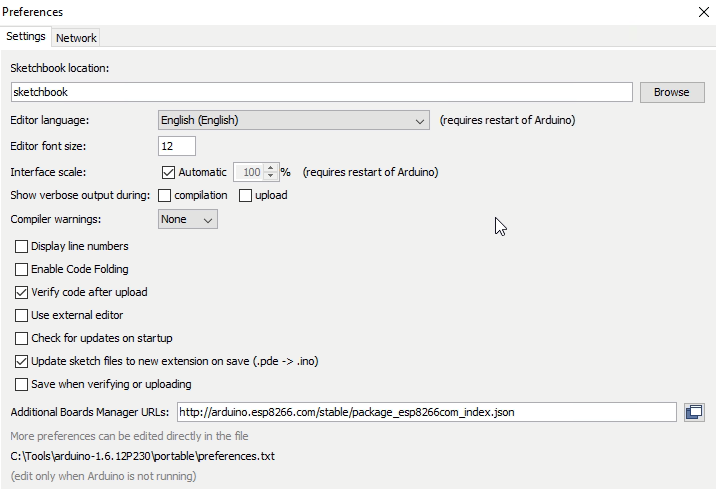

Enter the URL for additional boards. Currently we use the 2.3.0. stable version so you should enter:

http://arduino.esp8266.com/stable/package_esp8266com_index.json

Tutorial Arduino IDE2.png

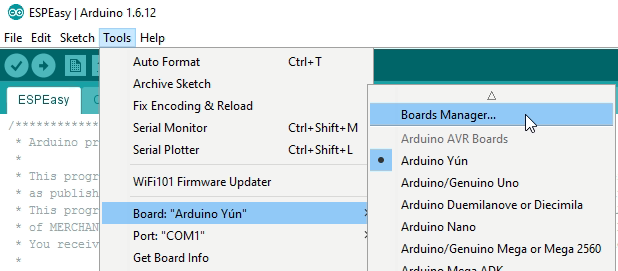

Now navigate to the board manager

Tutorial Arduino IDE3.png

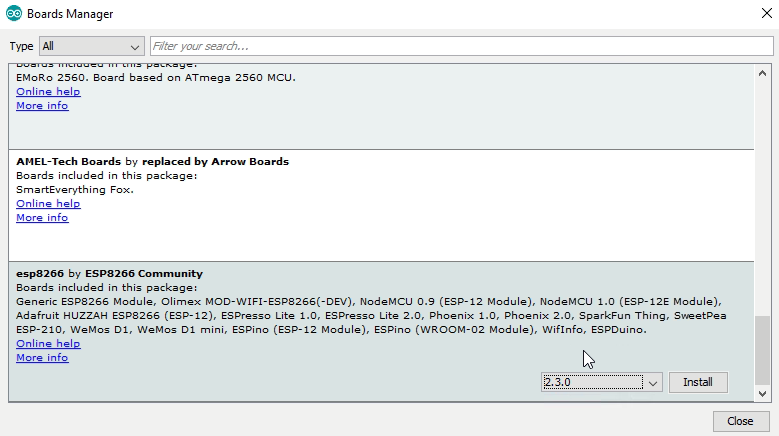

You should see the ESP option, select 2.3.0 version

Tutorial Arduino IDE4.png

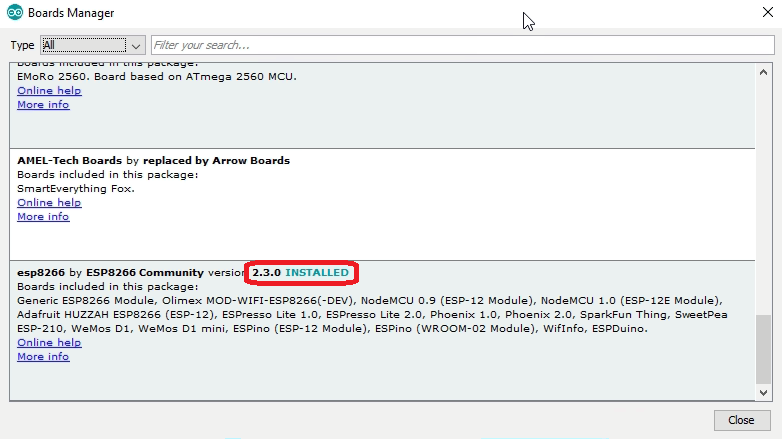

Click install (this will take some time, be patient, it should download approx. 450 MB)

Tutorial Arduino IDE5.png

Download ESP Easy Firmware

Download the latest version at https://github.com/letscontrolit/ESPEasy/releases

The zipfile contains a folder named Source and that contains two subfolders. Unpack the zipfile to some folder of your own choice and navigate to the Source folder.

Install libraries

The lib folder has all the libraries you need. The contents look like the screenshot below and should be copied to the Arduino libraries folder:

Tutorial FirmWare Easy3.png

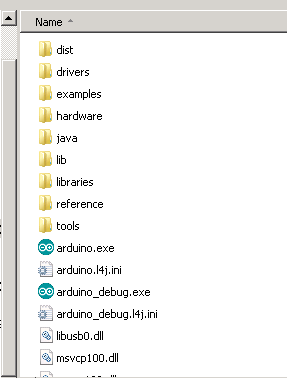

This is the folder structure for Arduino IDE. You can see the libraries folder in here:

Tutorial FirmWare Easy4.png


Once the additional libraries are copied to it, it should something look like this:

Tutorial FirmWare Easy5.png

Compile and upload

Inside the Source directory rename the src file to ESPEasy.

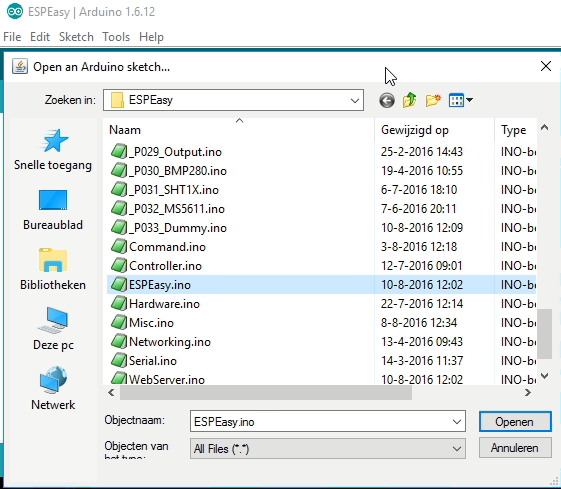

Launch Arduino IDE and navigatie to this ESPEasy folder. Open ESPEasy.ino

Tutorial FirmWare Easy6.png

Selecting the plugin sets

In version ESPEasy v2 or higher its possible to select different plugin sets. Since we're using Arduino IDE instead of Platformio, its neccesary to select them in ESPEasy.ino.

In the top of the .ino file you find the defines you can uncomment to enable a plugin set:

//build all the normal stable plugins
//#define PLUGIN_BUILD_NORMAL

//build all plugins that are in test stadium
//#define PLUGIN_BUILD_TESTING

//build all plugins that still are being developed and are broken or incomplete
//#define PLUGIN_BUILD_DEV

Remove the // from the plugin sets that you want to enable.

Selecting the correct board

It's important the select the right ESP board.

NodeMCU boards: If you have a NodeMCU V1.0 board, selection is easy:

Tutorial FirmWare Easy7.png


Selecting the correct flash size

In version ESPEasy version 2 the flash size requirements have has changed because we use SPIFFS file-storage now. Also we need to have enough room left to support OTA updates. (over the air updates).

  • For 512k boards (like the blue colored ESP-01 or the ESP-12 or ESP-201): Select 64k SPIFFS.
  • For 1M boards: Select 128k SPIFFS
  • For 4M boards: Select 1M SPIFFS.

If you change these settings ESPEasy will reset to factory defaults.

Note: If you upgrade from ESPEasy R148 or earlier to ESPEasy v2.0.0 or later, you will lose all your settings

Tutorial Firmware Easy7A.png


Select comport and upload

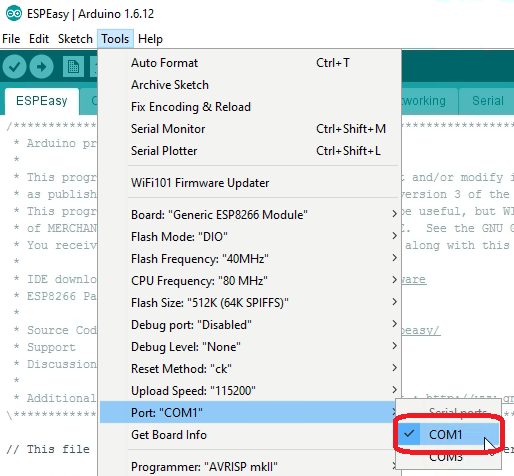

And select the right COM port:

Tutorial FirmWare Easy8.png


Finally, upload the sketch to your ESP board:

Please remember to set the esp module in programming mode by pushing and holding the flash button, and pushing the reset button once. (but on many recent development boards like the NodeMCU V1.0 this manual interaction is no longer needed)

Tutorial FirmWare Easy9.png


If all went well, the result in your status window should look like this:

Tutorial FirmWare Easy10.png

Updating source files

If you want to compile newer versions, download the source from github

https://github.com/ESP8266nu/ESPEasy

and copy these folders over the current ones that were obtained with the R120 zipfile.
