Latest revision as of 20:11, 24 May 2017
Contents
Introduction
The ESP module can read a DHT12 I2C temperature/Humidity sensor using the I2C protocol.
The DHT sensor needs to be connected to the I2C bus.

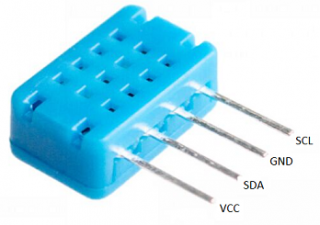

Hardware
The DHT sensor can be connected directly to an ESP module. Datasheet DHT12
Software
Custom Sketch
ESP Easy
Use the device tab on the ESP Easy webinterface and create a new task by editing one of the available tasks. Select "Temperatur/Humidity Sensor DHT12(I2C)" from the dropdown box.
Enter the IDX found in the Domoticz device page. That should be all.
