Feature Request collection/list
i am experimenting with ESPeasy, i am on R072, wounderful piece of code.
in the last days i made loosely around the forum some feature requests.
to see the ESPeasy going on from best to super-best, maybe there can be a sortet list of from the developer,
whitch features are considered to be realised in coming versions/milestone?
at the moment i will do like before an post feature-wishes loosely into the forum. ok?
in the last days i made loosely around the forum some feature requests.
to see the ESPeasy going on from best to super-best, maybe there can be a sortet list of from the developer,
whitch features are considered to be realised in coming versions/milestone?
at the moment i will do like before an post feature-wishes loosely into the forum. ok?
Re: Feature Request collection/list
as the list is locked
i put it here?
i can configure general http request with IP and PORT,
i have log-level 6 (on all logs), but i dont have these details in the log.
the port is missing. maybe a good thing to put it also there in the log, if one wants to check like me ...
another one: some more variables for general https request?
like the formfields from the config page? to differentiate a bunch of ESPs by their names in the http-string..

i put it here?
i can configure general http request with IP and PORT,
i have log-level 6 (on all logs), but i dont have these details in the log.
the port is missing. maybe a good thing to put it also there in the log, if one wants to check like me ...
Code: Select all
Jan 29 21:22:53 ESP Unit: 0 : HTTP : closing connection
Jan 29 21:22:53 ESP Unit: 0 : PN532: Tag: 2227488915 25
Jan 29 21:22:53 ESP Unit: 0 : HTTP : Delay 1000 ms
Jan 29 21:22:54 ESP Unit: 0 : HTTP : connecting to 192.168.14.253
Jan 29 21:22:54 ESP Unit: 0 : /esp01?device=sw13?device=rfid1¶m=rfid&value=2227489024.00
like the formfields from the config page? to differentiate a bunch of ESPs by their names in the http-string..
Re: Feature Request collection/list
Feature-Request: Date-Time-Stamp in the Config-name
my config stayed in flash while upgrading from R072 to R073,
but was deleted by downgrade vom R072 to R048 (i was experimenting with PN532).
so now i save my config. but the name stays the same. it would be helpful it he name would contain date+time, or a UUID instead, or device-name-UUID
(i have a NTP configurred an running)
my config stayed in flash while upgrading from R072 to R073,
but was deleted by downgrade vom R072 to R048 (i was experimenting with PN532).
so now i save my config. but the name stays the same. it would be helpful it he name would contain date+time, or a UUID instead, or device-name-UUID
(i have a NTP configurred an running)
Re: Feature Request collection/list
i saw some request jumped over the sticky-list. fantastic. therefore, another for more easy ESPeasy:
Feature-Request for a change with the IDX-Field (?!)
Explanation:
some people (like myself) did not see, that a Zero in the device-IDX field (default) blocks the device from sending.
http://www.esp8266.nu/forum/viewtopic.p ... =755#p3685
maybe a checkbox could help, like
[ ] send immediatey
or some other default, or some hints?:
idx : 1 (send) / 0 (no send)
Feature-Request for a change with the IDX-Field (?!)
Explanation:
some people (like myself) did not see, that a Zero in the device-IDX field (default) blocks the device from sending.
http://www.esp8266.nu/forum/viewtopic.p ... =755#p3685
maybe a checkbox could help, like
[ ] send immediatey
or some other default, or some hints?:
idx : 1 (send) / 0 (no send)
Re: Feature Request collection/list
I made the same fault and wondered, maybe just pre-fill it with something like 99 ?
Re: Feature Request collection/list
Feature-Wish: TSL2591
the TSL2561 Lux-sensor is already in, but i own a TSL2591
https://learn.adafruit.com/adafruit-tsl2591/overview
maybe sometime it will be supported in the source
the TSL2561 Lux-sensor is already in, but i own a TSL2591
https://learn.adafruit.com/adafruit-tsl2591/overview
maybe sometime it will be supported in the source

Re: Feature Request collection/list
Feature-Request: Output-Device (LED),
means: every connected GPIO (can) defined in the device section
as i found the LED as Output device on the wiki, i tried this.
but it was confusing that i did not have to create a device and define the GPIO on wich the LED was connected.
so mabye to be more logical, even if one can control GPIOs via HTTP without any defines,
that it would be more logical to have _every_ GPIO connection in the device section.
so one has there GPIO connections list
means: every connected GPIO (can) defined in the device section
as i found the LED as Output device on the wiki, i tried this.
but it was confusing that i did not have to create a device and define the GPIO on wich the LED was connected.
so mabye to be more logical, even if one can control GPIOs via HTTP without any defines,
that it would be more logical to have _every_ GPIO connection in the device section.
so one has there GPIO connections list
Re: Feature Request collection/list
sorry to make this list longer, but the ESPeasy is most of the best i have ever seen in HomeAutomation
So another Feature-Request for the list: "Level-Control" transformation to something like "IFTTT"
means: expand "level control" to control the GPIOS on rules, react on Level or events.
maybe rename to "rules engine", or something similar
my example was the LED on GPIO. i liked to led it flicker every second of the runtime. (a typo with the led/let, a joke in a second reading!)
so i could configure level-control to react on a Hysteresis, but if all conditions were more general, or other events on the system,
i could set rules to control GPIOs with on/off, PWM, and the like... that would be great!
can grow to a complex and powerful system. a lot of coding, i guess

So another Feature-Request for the list: "Level-Control" transformation to something like "IFTTT"
means: expand "level control" to control the GPIOS on rules, react on Level or events.
maybe rename to "rules engine", or something similar
my example was the LED on GPIO. i liked to led it flicker every second of the runtime. (a typo with the led/let, a joke in a second reading!)
so i could configure level-control to react on a Hysteresis, but if all conditions were more general, or other events on the system,
i could set rules to control GPIOs with on/off, PWM, and the like... that would be great!
can grow to a complex and powerful system. a lot of coding, i guess

Re: Feature Request collection/list
Feature-Request: HTML Meta-Tag on the main-Page with the runtime.
i did not look longer, but it seems the pages does not refresh itself.
but a (configurable) refreshtime via a meta-tag in the html/css would be nice.
to get the updated realtime runtime. wouldnt it?
http://www.w3schools.com/tags/att_meta_http_equiv.asp
edit 2016.02.02: seems to be there already somehow on /setup Page in R076
https://github.com/ESP8266nu/ESPEasy/bl ... Server.ino
edit: i found the log page already self-refreshing with javascript:
i did not look longer, but it seems the pages does not refresh itself.
but a (configurable) refreshtime via a meta-tag in the html/css would be nice.
to get the updated realtime runtime. wouldnt it?
http://www.w3schools.com/tags/att_meta_http_equiv.asp
edit 2016.02.02: seems to be there already somehow on /setup Page in R076
Code: Select all
// if Wifi setup, launch setup wizard
if (wifiSetup)
{
WebServer.send(200, "text/html", "<meta HTTP-EQUIV='REFRESH' content='0; url=http://192.168.4.1/setup'>");
//WebServer.send(200, "text/html", "<a class=\"button-menu\" href=\"setup\">Setup</a>");
return;
}
edit: i found the log page already self-refreshing with javascript:
Code: Select all
<script language='JavaScript'>function RefreshMe(){window.location = window.location}setTimeout('RefreshMe()', 3000);</script>
Last edited by tozett on 04 Feb 2016, 19:22, edited 2 times in total.
Re: Feature Request collection/list
And set it to the same interval as the sensor delay setting

Re: Feature Request collection/list
as long as the admin is not stopping me, (and my time is not running out)
i will try to collect useful ideas for the ESPeasy from around the forum at this single place here..
Feature-Request: PWMFADE, pin, target, time in seconds
http://www.esp8266.nu/forum/viewtopic.p ... f383#p3723
(is there a negative effect of PWMFADE if one would control some motors, not only LIGHT with that?)
i will try to collect useful ideas for the ESPeasy from around the forum at this single place here..

Feature-Request: PWMFADE, pin, target, time in seconds
http://www.esp8266.nu/forum/viewtopic.p ... f383#p3723
(is there a negative effect of PWMFADE if one would control some motors, not only LIGHT with that?)
Last edited by tozett on 02 Feb 2016, 12:02, edited 1 time in total.
Re: Feature Request collection/list
Feature-Request: Store state of GPIO in Flash, to be retrievable after (cold-)reboot
http://www.esp8266.nu/forum/viewtopic.p ... 3723#p3723Was thinking it would be worth adding code to write the gpio levels to flash and retrieving them on boot too?
Re: Feature Request collection/list
Development-Idea (far ahead a Feature-Request):
Store of ESP-"Swarm"-parameters/configs on a central unit
the interesting idea is working here: http://jeelabs.org/article/1604f/
(the JET-Database is it called)
The idea is, to send all configs via MQTT into a central HUB (Raspberry, ESP32...??) and store it there.
like in a usual it-infrastructure with a central server, somehow. So one could manage a lot of devices from one place..
interesting reading, the concept/source here:
http://jeelabs.net/projects/housemon/wiki
Store of ESP-"Swarm"-parameters/configs on a central unit
the interesting idea is working here: http://jeelabs.org/article/1604f/
(the JET-Database is it called)
The idea is, to send all configs via MQTT into a central HUB (Raspberry, ESP32...??) and store it there.
like in a usual it-infrastructure with a central server, somehow. So one could manage a lot of devices from one place..

interesting reading, the concept/source here:
http://jeelabs.net/projects/housemon/wiki
Re: Feature Request collection/list
While fiddling with Infrared IR:
http://www.esp8266.nu/forum/viewtopic.p ... =763#p3772
+1 Feature-Request: give out the recognized remote (sony/sanyo/technics..)
+1 Feature-Request: IR-Send (sometime?)
https://github.com/juanpintom/Souliss_E ... Receiver.h
http://internetofhomethings.com/homethings/?p=899
http://www.esp8266.nu/forum/viewtopic.p ... =763#p3772
+1 Feature-Request: give out the recognized remote (sony/sanyo/technics..)
+1 Feature-Request: IR-Send (sometime?)
https://github.com/juanpintom/Souliss_E ... Receiver.h
http://internetofhomethings.com/homethings/?p=899
Re: Feature Request collection/list

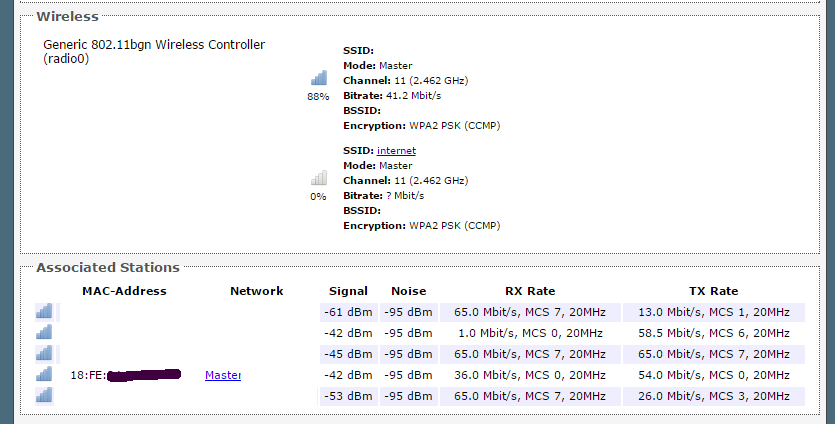

Feature-Request: show WIFI Strength
the AT-Firmware has RSSI values for the connected and the list of receivable WIFI networks.
think it is a informational value to show the RSSI value on the main status page, like my openwrt does on the AP side.. (maybe channel+bitrate, too?)
the AT-Firmware has RSSI values for the connected and the list of receivable WIFI networks.
think it is a informational value to show the RSSI value on the main status page, like my openwrt does on the AP side.. (maybe channel+bitrate, too?)
- Attachments
-
- rssi.png (34.39 KiB) Viewed 62847 times
Re: Feature Request collection/list
Feature-Request: Set Individual address in the device-section on i2c for multiple devices on I2C bus
http://www.esp8266.nu/forum/viewtopic.php?f=6&t=771
http://www.esp8266.nu/forum/viewtopic.php?f=6&t=771
Re: Feature Request collection/list
i was wondering today, why it is not already in:
Feature-Request: Return-Object for (System-) GPIO-States.
i need to now, whats coming from the sensors. at the moment i get this RETURN via the publish-template (http/mqtt). And Syslog. good.
but if i switch a LED on an GPIO, i only have a http-String as command to turn it on/off, and _NOT_ any return,
or am i wrong?
so i would be helpful, to get (at least in this scenario) somehow a return over the status from the GPIO..
Feature-Request: Return-Object for (System-) GPIO-States.
i need to now, whats coming from the sensors. at the moment i get this RETURN via the publish-template (http/mqtt). And Syslog. good.
but if i switch a LED on an GPIO, i only have a http-String as command to turn it on/off, and _NOT_ any return,
or am i wrong?
so i would be helpful, to get (at least in this scenario) somehow a return over the status from the GPIO..
Re: Feature Request collection/list
MQTT syslog channel/topic
MQTT boot-log channel/topic
i played with MQTT,
so i am missing a device "System Info", as an MQTT-syslog-channel.
would like to have a "LOGging" ind in the "System Info"-Device,
so everthing what is send to syslog is also published via MQTT
MQTT boot-log channel/topic
i played with MQTT,
so i am missing a device "System Info", as an MQTT-syslog-channel.
would like to have a "LOGging" ind in the "System Info"-Device,
so everthing what is send to syslog is also published via MQTT
Re: Feature Request collection/list
How about extending the gpio pulse output (i.e. http://<ESP IP address>/control?cmd=Pulse,<pin>,<state>,<duration>) to work with PCFGPIO outputs as well. This would be useful for relay control of garage doors and entry gates etc.
Re: Feature Request collection/list
Big Wish: MQTT commands!
If ESPs had only inputs on GPIOs,
it would only be a sensor-node (only), collects information and publishes them to backends.
actually in R078 we have only one central MQTT-publish-template to send it to one single backend ...
BUT
ESPeasy knows Outputs/Actuators (see wiki),
BUT
i cannot control them via MQTT (or do i miss something?)
so, most logical,a per DEVICE MQTT-Subscribe-Template (or per DEVICE general receive-Template) would make sense,
to control each output individually with a individual per device method (MQTT, http, UDP, ...?).
(as the outputs could also be controlled otherwise in parallel, i.e. on the ESP, i.e. Level-Control, Action,...)
on a big scene this could be an architetural decision for a matrix:
to have only sensor-nodes, small-nodes (in/out, in+out), function-nodes (with rules on them),
function-nodes as Actuators/with outputs with control from backends, ...
but a least minimal: receive of commands to set GPIO outputs (per device=per GPIO + via MQTT)
If ESPs had only inputs on GPIOs,
it would only be a sensor-node (only), collects information and publishes them to backends.
actually in R078 we have only one central MQTT-publish-template to send it to one single backend ...
BUT
ESPeasy knows Outputs/Actuators (see wiki),
BUT
i cannot control them via MQTT (or do i miss something?)
so, most logical,a per DEVICE MQTT-Subscribe-Template (or per DEVICE general receive-Template) would make sense,
to control each output individually with a individual per device method (MQTT, http, UDP, ...?).
(as the outputs could also be controlled otherwise in parallel, i.e. on the ESP, i.e. Level-Control, Action,...)
on a big scene this could be an architetural decision for a matrix:
to have only sensor-nodes, small-nodes (in/out, in+out), function-nodes (with rules on them),
function-nodes as Actuators/with outputs with control from backends, ...
but a least minimal: receive of commands to set GPIO outputs (per device=per GPIO + via MQTT)

Re: Feature Request collection/list
esp and wired ethernet.
seems possible,
https://github.com/esp8266/Arduino/issu ... -176710920
so dont you want to give it at try?
+1 ESPxx and wiznet (ethernet-lan)
edit: found a link here:
http://forum.espruino.com/conversations ... ?offset=25
some more info here:
http://www.esp8266.com/viewtopic.php?f=6&t=6910
espruino with wiznet (ethernet), cool!!
:
https://www.tindie.com/products/gfwilli ... rnet-shim/
seems possible,
https://github.com/esp8266/Arduino/issu ... -176710920
so dont you want to give it at try?
+1 ESPxx and wiznet (ethernet-lan)
edit: found a link here:
http://forum.espruino.com/conversations ... ?offset=25
some more info here:
http://www.esp8266.com/viewtopic.php?f=6&t=6910
espruino with wiznet (ethernet), cool!!

https://www.tindie.com/products/gfwilli ... rnet-shim/
Re: Feature Request collection/list
log to google spreadsheet.
cool example here:
https://docs.google.com/spreadsheets/d/ ... P0/pubhtml
done with (little) code here:
http://www.espruino.com/Logging+to+Google+Sheets

cool example here:
https://docs.google.com/spreadsheets/d/ ... P0/pubhtml
done with (little) code here:
http://www.espruino.com/Logging+to+Google+Sheets

Re: Feature Request collection/list
more/individual i2c adresses for devices
from a forum thread ;
http://www.esp8266.nu/forum/viewtopic.p ... 3973#p3973
from a forum thread ;
http://www.esp8266.nu/forum/viewtopic.p ... 3973#p3973
Re: Feature Request collection/list
Some kind of timed GPIO switching. I see NTP support in firmware, this means ESP Easy can do timekeeping? If so, timed GPIO switching should be possible. I would like to have this independent of large and complex domotics software solutions.
Re: Feature Request collection/list
My wishes...
1) Sending GPIO input and output states not only on changes but also in regular intervals and at startup.
2) Selecting sending intervals for each task individually
3) manually selectable I2C address for each device
4) pulse output time increase to 1h or more
1) Sending GPIO input and output states not only on changes but also in regular intervals and at startup.
2) Selecting sending intervals for each task individually
3) manually selectable I2C address for each device
4) pulse output time increase to 1h or more
Last edited by chunter1 on 14 Feb 2016, 18:21, edited 2 times in total.
Re: Feature Request collection/list
My wish would be to add to the protocols another one - Souliss protocol. I'm gonna probably create a separate thread for discussing that

Re: Feature Request collection/list
use the CHIP id to identify more startup SSIDs...
they are all equal ESP_0...
but why not ESPeasy_xxx =CHIPID ?
CHIPID could also identify Nodes/MQTT, but nice if it would be changeable via webGUI ...
they are all equal ESP_0...
but why not ESPeasy_xxx =CHIPID ?
CHIPID could also identify Nodes/MQTT, but nice if it would be changeable via webGUI ...
-
- Normal user
- Posts: 40
- Joined: 17 Nov 2015, 15:58
Re: Feature Request collection/list
My wish:
Rock stable MQTT. It works already very well for sensors and simple actors like a relay on a GPIO. Other outputs like PWM, the minipro-extender and other extra IO are not supported or at least not documented.
If you need help for documentation, I like to get involved (I tried to login to the wiki, but it said that I am already registered since 2013
)
Rock stable MQTT. It works already very well for sensors and simple actors like a relay on a GPIO. Other outputs like PWM, the minipro-extender and other extra IO are not supported or at least not documented.
If you need help for documentation, I like to get involved (I tried to login to the wiki, but it said that I am already registered since 2013

Re: Feature Request collection/list
rock stable ESPs on hidden places in homeautomation
WATCHDOG for COLD-RESET (somehow)
i posted elsewhere, but it should be a feature-wish here:
i did not understand everything, but may points to consider:
Another good idea:

WATCHDOG for COLD-RESET (somehow)
i posted elsewhere, but it should be a feature-wish here:
for an external watchdog i dont know how, but maybe connect something to the reset pin..for having "reliable" ESP-nodes at some unusual places in home automation i would be good to
cold-restart the ESP. Anybody doing this?
i read here:
http://tech.scargill.net/esp8266-reset/#comment-4735which seems a good idea for an _internal_ watchdog. maybe a wishlist feature?I send an MQTT "heartbeat" message to the boards from a central "controller" which is a battery backed-up Raspberry Pi2 - the ESPs have a flashing light on them that alternates every second. If that heartbeat does not arrive, I stop the flashing lights, try again to get the message and if that fails, reboot the board.
i did not understand everything, but may points to consider:
http://hallard.me/esp8266-autoreset/It seems that module Reset can be done with CH_PD line (pulling it low) leaving Reset alone with pull-up. And leaving Reset alone seems to be better for sleep/wake up mode (when GPIO16 connected to Reset) and avoid some problems in this case.
Another good idea:
http://tech.scargill.net/esp8266-and-lo ... mment-1147I use a variation of the normal reset whereby the first trigger of the watchdog calls a routine to log the error in EEPROM then immediately resets the board - so I know the difference between a power off and a watchdog reset).
Re: Feature Request collection/list
WATCHDOG with SOFT-RESET (for an embedded device like the esp)
http://tech.scargill.net/esp8266-and-lo ... ment-13335
Code: Select all
Sometime back I faced a strange issue where after ESP.reset() used to perform soft reset did not worked perfectly. The ESP was not able connect to the same router reliably. So I tied GPIO16 to RESET pin. I found this in one of the Blogs on tech.scargill Blog itself. Whenever a reset was required I used the following:
RESET_PIN = GPIO16;
pinMode(RESET_PIN, OUTPUT);
digitalWrite(RESET_PIN, LOW);
The code above will ensure a complete reset done by the software. This has worked for me with 100% results.
I have seen ESP hanging in software loops where we wait till content is available:
while (!client.available()) {
}
Re: Feature Request collection/list
Support of 1-wire (OneWire) variants of
DS18B20
DS18S20 - Please note there appears to be an issue with this series.
DS1822
DS1820
from: http://www.esp8266.nu/forum/viewtopic.p ... =277#p4514
links to code: https://github.com/milesburton/Arduino- ... ol-Library
DS18B20
DS18S20 - Please note there appears to be an issue with this series.
DS1822
DS1820
from: http://www.esp8266.nu/forum/viewtopic.p ... =277#p4514
links to code: https://github.com/milesburton/Arduino- ... ol-Library
Re: Feature Request collection/list
1.) really STABLE PWM output
2.) Timed dimmer command e.g. ".../control?cmd=DIM,14,0,60" (dimms GPIO14 to 0% in 60 seconds)
Am using timed dimmer function with homematic devices already as wakeup-light
2.) Timed dimmer command e.g. ".../control?cmd=DIM,14,0,60" (dimms GPIO14 to 0% in 60 seconds)
Am using timed dimmer function with homematic devices already as wakeup-light

- nonflammable
- Normal user
- Posts: 42
- Joined: 09 Mar 2016, 22:19
- Location: Poland
Re: Feature Request collection/list
WOL - receive magic packet and set selected GPIO to HIGH for defined time.
Last edited by nonflammable on 01 Apr 2016, 19:39, edited 7 times in total.
Re: Feature Request collection/list
WoL must be: "Wake on Wireless LAN" !!??
is this possible?
https://technet.microsoft.com/de-de/lib ... s.10).aspx
Wake on Lan: explained here:
http://www.howtogeek.com/70374/how-to-g ... enable-it/
is this possible?
https://technet.microsoft.com/de-de/lib ... s.10).aspx
Wake on Lan: explained here:
http://www.howtogeek.com/70374/how-to-g ... enable-it/
-
- Normal user
- Posts: 18
- Joined: 08 Oct 2015, 18:02
Re: Feature Request collection/list
Add SI1145 UV IR Visible Sensor I2C, this is a ultraviolet sensor, give result in UV index. Also measure infrared and visible light, 3 in one sensor.
http://www.ebay.com/itm/SI1145-UV-IR-Vi ... OSwQoFWPHi~
Arduino libary https://github.com/adafruit/Adafruit_SI1145_Library
http://www.ebay.com/itm/SI1145-UV-IR-Vi ... OSwQoFWPHi~
Arduino libary https://github.com/adafruit/Adafruit_SI1145_Library
- nonflammable
- Normal user
- Posts: 42
- Joined: 09 Mar 2016, 22:19
- Location: Poland
Re: Feature Request collection/list
WOL - i meen - receive magic packet when ESP is working - not wake ESPtozett wrote:WoL must be: "Wake on Wireless LAN" !!??
is this possible?
https://technet.microsoft.com/de-de/lib ... s.10).aspx
Wake on Lan: explained here:
http://www.howtogeek.com/70374/how-to-g ... enable-it/
https://en.wikipedia.org/wiki/Wake-on-LAN#Magic_packet
i think it's posible to receive that by working ESP
I have Synology NAS without WOL, but i can wake it by ESP GPIO set to HIGH for "half second". ESP could receive magic packet and set GPIO HIGH for while. You can turn on any device without build-in WOL eg. from router.
Re: Feature Request collection/list
Nice idea. I happen to have multiple Synology systems without WOL and a router capable of sending WOL. Indeed this could bring WOL to systems that do not support it (as long as you have 3V3 or 5V available to feed the ESP...)nonflammable wrote:i think it's posible to receive that by working ESP
I have Synology NAS without WOL, but i can wake it by ESP GPIO set to HIGH for "half second". ESP could receive magic packet and set GPIO HIGH for while. You can turn on any device without build-in WOL eg. from router.
Have to create a plugin for this.
Re: Feature Request collection/list
WOL plugin is pushed to the plugin playground:
https://github.com/ESP8266nu/ESPEasyPluginPlayground
https://github.com/ESP8266nu/ESPEasyPluginPlayground
Re: Feature Request collection/list
could you please provide some wiring information _with_ the plugin,nonflammable wrote: I have Synology NAS without WOL, but i can wake it by ESP GPIO set to HIGH for "half second".
how to start the synology nas with the GPIO high (if i got this right)?
tankx, great idea for more like this...

Re: Feature Request collection/list
RC522 Rfid reader support would be cool
(https://github.com/Jorgen-VikingGod/ESP8266-MFRC522)

Re: Feature Request collection/list
ETHERNET all-in-one connector.
I'm dying to get an ESP8266 but with ethernet connection.
Please make it an all-in-one type with magnetics and RJ-45 jack (and PHY and MAC nonsense).
The WiFi version isn't going to cut it for a lot of projects.
Personally, I would pay €40+ for such an device. (Given it's programmable with GPIO, which would only be a concurrent of the €50 XPort. (Others can't do I/O))
But if I look at the ESP8266, you guys could make it for around €10,- which would give quite an return on investment...
(Bet you could even let some enthusiasts develop it, without a lot of additional (single time) costs.)
Seeing how much of a succes the ESP8266 is an ethernet version would probably hit hard.
There are too much people trying to use the annoying ENC28J60 or WIZ5500 or expensive/overpowered XPort.
We need an ethernet version of the ESP8266!
No, serious: Is such a product in development? If not, please do so.
I'm dying to get an ESP8266 but with ethernet connection.
Please make it an all-in-one type with magnetics and RJ-45 jack (and PHY and MAC nonsense).
The WiFi version isn't going to cut it for a lot of projects.
Personally, I would pay €40+ for such an device. (Given it's programmable with GPIO, which would only be a concurrent of the €50 XPort. (Others can't do I/O))
But if I look at the ESP8266, you guys could make it for around €10,- which would give quite an return on investment...
(Bet you could even let some enthusiasts develop it, without a lot of additional (single time) costs.)
Seeing how much of a succes the ESP8266 is an ethernet version would probably hit hard.
There are too much people trying to use the annoying ENC28J60 or WIZ5500 or expensive/overpowered XPort.
We need an ethernet version of the ESP8266!
No, serious: Is such a product in development? If not, please do so.
-
- Normal user
- Posts: 31
- Joined: 09 Feb 2016, 22:16
Re: Feature Request collection/list
Why not use an older rasperry if ethernet connection is essential?sommers9 wrote:ETHERNET all-in-one connector.
I'm dying to get an ESP8266 but with ethernet connection.
Please make it an all-in-one type with magnetics and RJ-45 jack (and PHY and MAC nonsense).
The WiFi version isn't going to cut it for a lot of projects.
Personally, I would pay €40+ for such an device. (Given it's programmable with GPIO, which would only be a concurrent of the €50 XPort. (Others can't do I/O))
But if I look at the ESP8266, you guys could make it for around €10,- which would give quite an return on investment...
(Bet you could even let some enthusiasts develop it, without a lot of additional (single time) costs.)
Seeing how much of a succes the ESP8266 is an ethernet version would probably hit hard.
There are too much people trying to use the annoying ENC28J60 or WIZ5500 or expensive/overpowered XPort.
We need an ethernet version of the ESP8266!
No, serious: Is such a product in development? If not, please do so.
Re: Feature Request collection/list
I don't think this is realistic.sommers9 wrote:ETHERNET all-in-one connector.
No, serious: Is such a product in development? If not, please do so.
ESPEasy is a software project not a hardware project.
ESP8266 is developed just for wireless connection because people want to get rid off the UTP wires.
There is nothing on the ESP-chip that makes it suitable for wired ethernet.
Use a Arduino (Uno/Mega) with the wiznet W5100 board, that is exactly what you want https://www.arduino.cc/en/Main/ArduinoEthernetShield
Re: Feature Request collection/list
is it possible to build a button?
Switch on via MQTT: on / off or off / on .. hold n - seconds.
i used a switch for my project and i have to program via fhem the on / off feature:
https://blog.moneybag.de/erfahrungsberi ... -diffuser/
https://blog.moneybag.de/espeasy-admini ... -und-fhem/
it it possible to build a LED stripe like this?
https://blog.moneybag.de/fhem-mit-led-s ... ertragung/
transmit data via a hex code to light up the LEDs in several colors
Switch on via MQTT: on / off or off / on .. hold n - seconds.
i used a switch for my project and i have to program via fhem the on / off feature:
https://blog.moneybag.de/erfahrungsberi ... -diffuser/
https://blog.moneybag.de/espeasy-admini ... -und-fhem/
it it possible to build a LED stripe like this?
https://blog.moneybag.de/fhem-mit-led-s ... ertragung/
transmit data via a hex code to light up the LEDs in several colors
Re: Feature Request collection/list
That would be the most bulky solution yet xDhighroller wrote: Why not use an older rasperry if ethernet connection is essential?
An raspberry Pi uses a lot more power.
An raspberry Pi needs an OS (which should be kept up to date).
An raspberry Pi is quite big for embedded solutions.
An raspberry Pi is not easily mountable on a breadboard.
An raspberry Pi is not easily programmed through it's pins.
An raspberry Pi has to be shut down in a proper way.
You could indeed use an Arduino Nano + Nano Ethernet shield.
But that still is much more bulky that an all-in-one device as the ESP8266 and would require a separate controller.
I would like to simply attach a small ethernet port to a shift register. And be able to control these over ethernet.
But it shouldn't be over WiFi, since it would be in an industrial setting.
(But that's just one of the applications)
Re: Feature Request collection/list
Than I could aswell go with an Arduino Ethernet Board (https://www.arduino.cc/en/Main/ArduinoBoardEthernet).costo wrote:Use a Arduino (Uno/Mega) with the wiznet W5100 board, that is exactly what you want https://www.arduino.cc/en/Main/ArduinoEthernetShield
But it should be possible in a small form-factor. If you would say someone could make such an tiny Wi-Fi device (as the ESP8266) also nobody would believe you.
If you have an 10BASE-T converter (or basically an IC that can convert ethernet signaling to TTL serial) you could feed it in the ESP8266 protocol stack/processing and it would somewhat work?

Hmm, but you're probably right, I should annoy WizNet or Microchip for such a device/implementation.
-
- Normal user
- Posts: 31
- Joined: 09 Feb 2016, 22:16
Re: Feature Request collection/list
Raspberry is just as easy to program as an esp. Actually it would be easier since you have a lot more hardware (ram, cpu) and programing languages.sommers9 wrote:That would be the most bulky solution yet xDhighroller wrote: Why not use an older rasperry if ethernet connection is essential?
An raspberry Pi uses a lot more power.
An raspberry Pi needs an OS (which should be kept up to date).
An raspberry Pi is quite big for embedded solutions.
An raspberry Pi is not easily mountable on a breadboard.
An raspberry Pi is not easily programmed through it's pins.
An raspberry Pi has to be shut down in a proper way.
You could indeed use an Arduino Nano + Nano Ethernet shield.
But that still is much more bulky that an all-in-one device as the ESP8266 and would require a separate controller.
I would like to simply attach a small ethernet port to a shift register. And be able to control these over ethernet.
But it shouldn't be over WiFi, since it would be in an industrial setting.
(But that's just one of the applications)
About the size you could go for a pi zero with usb to rj45 adapter.
Re: Feature Request collection/list
We only do software here and only the 'application layer', not even the SDK or libraries.sommers9 wrote:ETHERNET all-in-one connector.
I'm dying to get an ESP8266 but with ethernet connection.
Please make it an all-in-one type with magnetics and RJ-45 jack (and PHY and MAC nonsense).
The WiFi version isn't going to cut it for a lot of projects.
Personally, I would pay €40+ for such an device. (Given it's programmable with GPIO, which would only be a concurrent of the €50 XPort. (Others can't do I/O))
But if I look at the ESP8266, you guys could make it for around €10,- which would give quite an return on investment...
(Bet you could even let some enthusiasts develop it, without a lot of additional (single time) costs.)
Seeing how much of a succes the ESP8266 is an ethernet version would probably hit hard.
There are too much people trying to use the annoying ENC28J60 or WIZ5500 or expensive/overpowered XPort.
We need an ethernet version of the ESP8266!
No, serious: Is such a product in development? If not, please do so.
You need to ask Expressif if they are interested in this kind of chip development. Doubt this because the whole world wants the convenience of wireless...
But I agree that having a tiny SOC module like ESP12E with build in wired Ethernet for less than 3 dollar and easy code portability from Arduino would also be fun for some applications.
Re: Feature Request collection/list
Is it possible to enhance the Settings Save routine so that the Unit number becomes part of the standard name. Something like:
config_unit1.txt
config_unit1.txt
Who is online
Users browsing this forum: No registered users and 18 guests
