Introduction

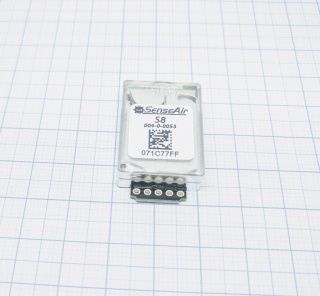

S8 006.jpg

The Senseair plugin can be used for multiple gas sensors from the company Senseair. The main example is the S8 but other sensor units that work is tSense (K70), K30, K33, S8 (and soon LP8).

Hardware

Circuit wiring (S8 seen from PCB side, with the 5 vias down and the 4 vias up):

    ESP               S8
    GPIO (7)   <-->   TX (3rd via [middle] of the 5 vias)
    GPIO (8)   <-->   RX (4th via [right of TX])

    Power
    5.0V       <-->   VCC (4th via of the 4 vias, 300 mA peak/30 mA average)
    GND        <-->   GND (3rd via [left of VCC])

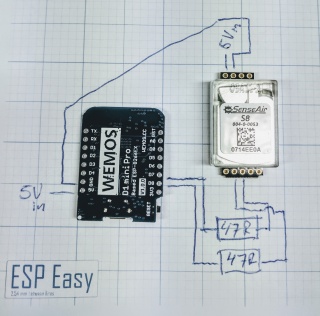

Set up the S8 according to this simple schematics. If you want to take extra precautions you should add 47R resistor or similar to the TX and RX signals (this is not used in the pictures below). In this example we use the Wemos D1 mini as the host of the 5V input to the S8 and connect the Wemos to USB for power. PLEASE OBSERVE THAT FEEDING THE S8 WITH 5.2+V WILL DAMAGE THE INTERNAL LAMP AND BREAK THE UNIT - GIVING FALSE VALUES!

2.54mm A4 paper EXAMPLE.jpg.jpg

Pictures of the build:

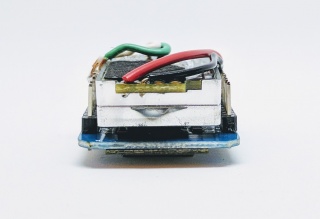

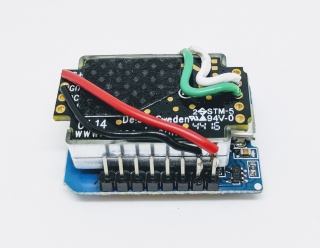

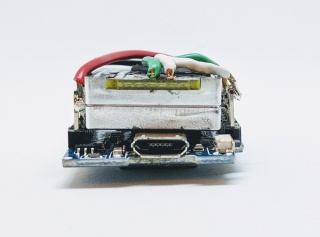

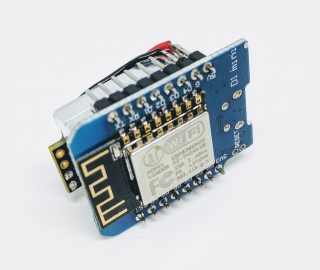

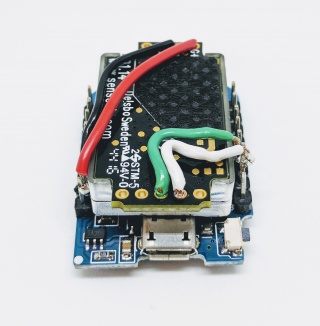

S8 001.jpg

S8 002.jpg

S8 003.jpg

S8 004.jpg

S8 005.jpg

ESP Easy

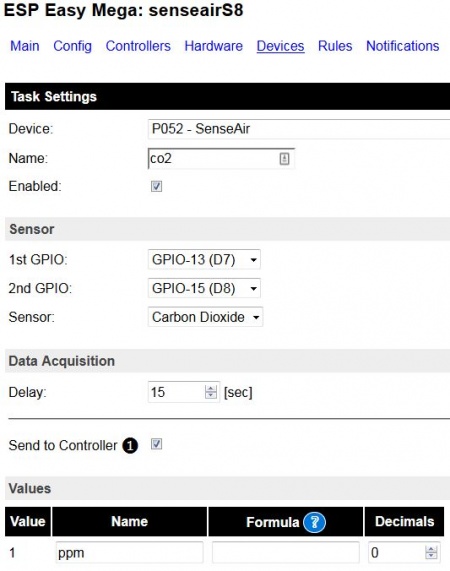

Setup the ESP Easy according to this:

S8 ESP Easy.JPG

Indicators (recommended settings)

Indicator Value Name Delay (sec) Decimals Extra information
Status N/A
Carbon Dioxide ppm 15 0
Temperature N/A Used for tSense (K70), K30, K33
Humidity N/A Used for tSense (K70), K30, K33

Optional settings

Use of formulas

Use of value names
