Search found 15 matches

by sm0k0
27 Jan 2019, 09:17
Forum: ESP Easy: Software
Topic: Can`t get _P105_RGBW Plugin compiled
Replies: 4
Views: 1727

Re: Can`t get _P105_RGBW Plugin compiled

Great Job ripp2003 ! :D That did the trick, many thanks !! DATA: [====== ] 55.7% (used 45644 bytes from 81920 bytes) PROGRAM: [========= ] 86.5% (used 771988 bytes from 892912 bytes) [SUCCESS] Took 27.20 seconds Plugin is compiling properly and working as expected. Thanks again and regards sm0k0
by sm0k0
12 Jan 2019, 08:57
Forum: ESP Easy: Software
Topic: Can`t get _P105_RGBW Plugin compiled
Replies: 4
Views: 1727

Can`t get _P105_RGBW Plugin compiled

Hi there, maybe somebody here who can help me with the compile of the _P105 from Plugin Playground. Given : - working IDE PlatformIO (Arduino IDE not working with ESPEasy_mega-20190110 without heavy customization) - SRC ESPEasy_mega-20190110 (others tried also) - _P105_RGBW from Plugin Playground - ...
by sm0k0
12 Mar 2018, 21:17
Forum: ESP Easy: General Discussion
Topic: ESPEasy32 or uPYEasy?
Replies: 8
Views: 5139

Re: ESPEasy32 or uPYEasy?

Hi there,
4PWM + 4 Switches and 1 LDR i would go for the ESP8266 for the moment as Martinus already wrote, even without GPIO multiplexer a reliable solution until ESPEasy ESP32 support is ready2go.

regards
sm0k0
by sm0k0
12 Mar 2018, 20:07
Forum: ESP Easy: General Discussion
Topic: Alexa Emulation support in EasyESP?
Replies: 2
Views: 2682

Re: Alexa Emulation support in EasyESP?

Hi,
no it hasn`t.

i`m using a workaround based on DomoticZ and Ha-bridge running on an RPI3.
regards
sm0k0

# remember to backup your config and use a secure but good password .......
by sm0k0
22 Nov 2017, 15:35
Forum: ESP Easy: Hardware
Topic: Support for "Sonoff Pow" (from ITead) with Power Consumption Measurement via HLW8012 (HLW 8012) IC?
Replies: 146
Views: 95925

Re: Support for "Sonoff Pow" (from ITead) with Power Consumption Measurement via HLW8012 (HLW 8012) IC?

Hi again, looks like the issue is the poor memory on the ESP ..... i have used workaround in the meantime : remove all unwanted plugins by excluding them from compiling, add at the very beginning of each plugin #ifdef PLUGIN_BUILD_DISABLED and as a last line in desired plugin to exclude #endif remov...
by sm0k0
21 Nov 2017, 16:41
Forum: ESP Easy: Hardware
Topic: Support for "Sonoff Pow" (from ITead) with Power Consumption Measurement via HLW8012 (HLW 8012) IC?
Replies: 146
Views: 95925

Re: Support for "Sonoff Pow" (from ITead) with Power Consumption Measurement via HLW8012 (HLW 8012) IC?

Hi around there. maybe somebody could help me with compiling P170_HLW8012. I have installed Atom (1.22.1 / 64) and PlatformIO at version Home 0.3.2·Core 3.5.0b3. following the entire HowTo`s and use the latest Mega-branch on an Win10 x64. I have installed all required deps and libraries. Compiling f...
by sm0k0
01 May 2017, 09:05
Forum: ESP Easy: Projects / Applications
Topic: RFID Access control / door lock actuator
Replies: 42
Views: 28098

Re: RFID Access control / door lock actuator

Hi tozett,

scale has been changed of course but signal looks ok, noisy but ok.
by sm0k0
30 Apr 2017, 16:19
Forum: ESP Easy: Projects / Applications
Topic: RFID Access control / door lock actuator
Replies: 42
Views: 28098

Re: RFID Access control / door lock actuator

thanks tozett. :shock: what i have seen on that device, there is a lot of noise on it in general so a LVL shifter is not a bad idea. From what is telling Espressif, ESP8266 is not 5v tolerant, on some china bombers it might work, on some it doesn't. Depends on the delivering circuit, the current, br...
by sm0k0
29 Apr 2017, 13:06
Forum: ESP Easy: Projects / Applications
Topic: RFID Access control / door lock actuator
Replies: 42
Views: 28098

Re: RFID Access control / door lock actuator

Hi again,

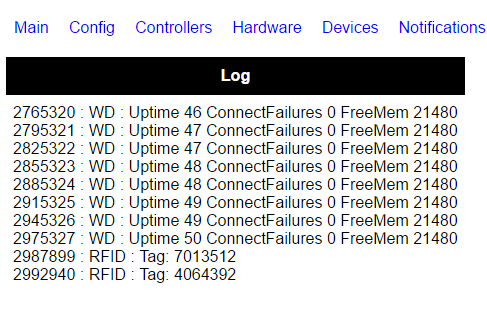

a appropriate LVL shifter and changing #define PLUGIN_008_WGSIZE to "34" does the trick

this is working like a charm. :mrgreen:

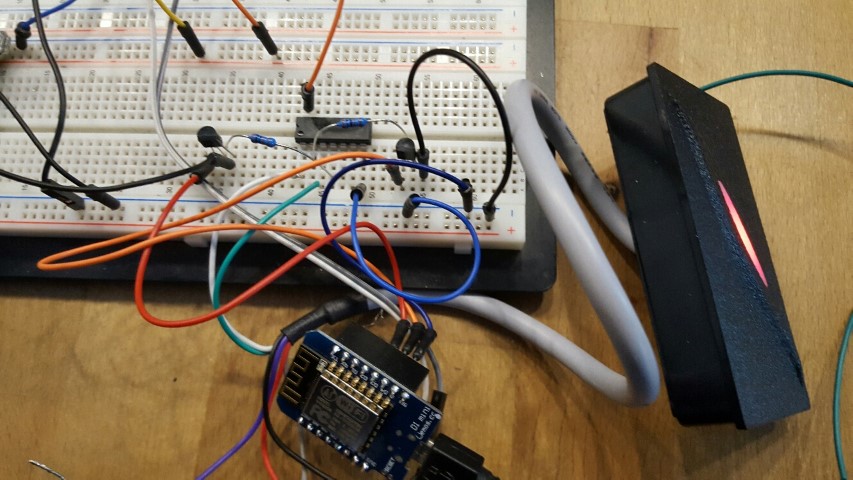

wemos-wiegand34 (Small).jpg
wemos-wiegand34 (Small).jpg (113.15 KiB) Viewed 13154 times
best regards
sm0k0
by sm0k0
29 Apr 2017, 08:56
Forum: ESP Easy: Projects / Applications
Topic: RFID Access control / door lock actuator
Replies: 42
Views: 28098

Re: RFID Access control / door lock actuator

Thanks tozett. In the meatime i have checked the devel branch, recompiled the FW but same result. I stepped back to the signal itself and it looks like the problem is not the Software but the falling edge is "too small" to get recognized by ESP. Image2.png Once i have connected the Reader via the le...
by sm0k0
28 Apr 2017, 09:51
Forum: ESP Easy: Projects / Applications
Topic: RFID Access control / door lock actuator
Replies: 42
Views: 28098

Re: RFID Access control / door lock actuator but W34 not W26

Hi all, hope this is the right section for my question. Since some days i try to get a new Wiegand34 Reader (chinabomber KR100 from A..express) running with an WemosD1 mini or nodemcu or whitty on R108,120 & 147 without any result. Another reader, Wiegand26 Reader (Sebury Touch whatever) works perfe...
by sm0k0
18 Feb 2017, 22:31
Forum: ESP Easy: General Discussion
Topic: Number of Devices / Tasks limited to 12 ?
Replies: 36
Views: 15487

Re: Number of Devices / Tasks limited to 12 ?

Hi Edwin,
:D thanks for your advise. Works perfect !

Thanks & regards
sm0k0
by sm0k0
18 Feb 2017, 16:11
Forum: ESP Easy: General Discussion
Topic: Number of Devices / Tasks limited to 12 ?
Replies: 36
Views: 15487

Number of Devices / Tasks limited to 12 ?

Hi all, i`m currently working on a heating temp monitor for 3 heater circuits based on an Wemos Mini D1. In the past i used 24 x DS18B20, 3 Hall Sensors ( Flow Meter) and a 4x20 lCD display. In general it was really easy to port all devices to the Wemos (very very ..) until i reached Task 12 (Device...
by sm0k0
04 Oct 2016, 10:26
Forum: ESP Easy: General Discussion
Topic: Feature Wish: GPIO before read sensor
Replies: 0
Views: 1578

Feature Wish: GPIO before read sensor

Hi, maybe im just blind but where can i request "wish" a feature ? Would be great if you can add that to the feature wishlist or if you have an suggestion how to get that sorted. Pre-Measurement Condition #**** pull GPIO --> wait configurable delay (ms) --> initiate measurement eg. temp sensor if pr...
by sm0k0
03 Oct 2016, 22:02
Forum: ESP Easy: Software
Topic: Deep Sleep mode
Replies: 26
Views: 41162

Re: Deep Sleep mode

Hi all, fighting with DeepSleep on an Wemos D1 and EysEsp R120. I tried now already 5 devices, 3 WeMos and 2 NodeMCU without suceess. Even the cabeling is correct and sensor delay is set properly the Boards will not wake up after gone to sleep. I validated that with a different Firmware and a approp...
