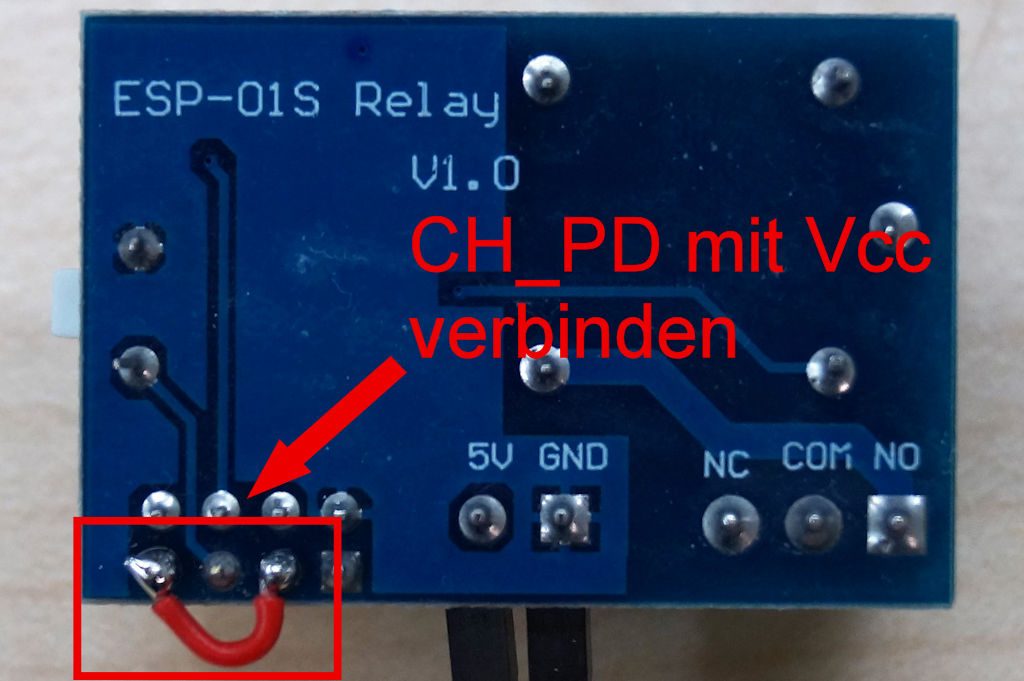

Hi there, everything is about which relay module you have. ESP-01 relay V1.0 there you have to do to changes first wire connect VCC pin and CH_PD pin picture1 step two is take out R2 picture 2.
ESP-01 relay V4.0 only first step connect VCC and CH_PD.
No connection ESP01 and Relay
Moderators: grovkillen, Stuntteam, TD-er
Re: No connection ESP01 and Relay
- Attachments
-
- E71CCEB0-339D-4FE3-A7F6-E99129BDF681.jpeg (104.56 KiB) Viewed 5115 times
-
- 890B3C30-70E7-40D3-9EC8-D69B89C6CB47.jpeg (85.47 KiB) Viewed 5115 times
-
dynamicdave
- Normal user
- Posts: 258
- Joined: 30 Jan 2017, 20:25
- Location: Hampshire, UK
Re: No connection ESP01 and Relay
Only just seen this thread.
I spent a couple days (a month or so ago) trying to sort out why the ESP-01 didn't work after I used the programmer, shown above, to flash it.
Discovered like a few people that a pull-up is missing on SOME of the ESP-01 boards.
I had a mixture of boards, so some worked and some didn't - which just added to my confusion.
The miniature 'programmer' does have pull-ups so when the ESP-01 is mounted on the programmer it will work correctly.
Solution is a 10K pull-up resistor from the CHPD pin to +3v3 if you want to operate the ESP-01 in standalone mode.
Cheers from David.
I spent a couple days (a month or so ago) trying to sort out why the ESP-01 didn't work after I used the programmer, shown above, to flash it.
Discovered like a few people that a pull-up is missing on SOME of the ESP-01 boards.
I had a mixture of boards, so some worked and some didn't - which just added to my confusion.
The miniature 'programmer' does have pull-ups so when the ESP-01 is mounted on the programmer it will work correctly.
Solution is a 10K pull-up resistor from the CHPD pin to +3v3 if you want to operate the ESP-01 in standalone mode.
Cheers from David.
