Search found 55 matches

by remko2000
18 Nov 2019, 16:11
Forum: ESP Easy: Projects / Applications
Topic: LJ12A3
Replies: 2
Views: 4474

LJ12A3

I follow this schema: https://www.letscontrolit.com/wiki/index.php?title=LJ12A3 I connect everything like the diagram and connect it with my wemos on D6. Now I'm struggling with the settings for my wemos such as debounce time, countertype and modetype. What are the correct settings? I made a switch ...
by remko2000
12 Nov 2019, 17:07
Forum: ESP Easy: Projects / Applications
Topic: District heating - Reading Kamstrup Multical 601
Replies: 0
Views: 6027

District heating - Reading Kamstrup Multical 601

I'm looking for a solution to read the values of my kamstrup multical 601 heating. I bought a sensor on a Danish site (https://wiki.hal9k.dk/projects/kamstrup) and try the ESP-easy (test)script for the kamstrup 401: https://github.com/chipsi007/ESPEasyPluginPlayground/commit/7ae64fabbe05ebf79df5d3cf...
by remko2000
05 Nov 2019, 16:23
Forum: ESP Easy: Hardware
Topic: Hardware watchdog
Replies: 14
Views: 6464

Re: Hardware watchdog

I use now GPIO12, this needs a pull up resisitor (I use now the internal one). This works fine. When I enable 'rules' the watchdog keeps resetting my wemos every 5 minutes. It should be nice if I recieve a message (email/prowl) when the watchdog kicks in. Is this simple to realize? This is my code: ...
by remko2000
04 Nov 2019, 15:44
Forum: ESP Easy: Hardware
Topic: Hardware watchdog
Replies: 14
Views: 6464

Re: Hardware watchdog

I think it working now correctly: I use this rule: On System#Boot Do Monitor,GPIO,0 TimerSet,1,1 EndOn On Rules#Timer=1 Do Pulse,0,1,500 TimerSet,1,1 EndOn I connect the ' in' on GPIO0 and ' out' on RST. No switch input with pullup resisitor of hardware pull up needed. If I disable 'rules' the watch...
by remko2000
02 Nov 2019, 14:43
Forum: ESP Easy: Hardware
Topic: Hardware watchdog
Replies: 14
Views: 6464

Re: Hardware watchdog

I've checked the pull up with a switch input under devices. No succes. On the moment I add a switch input (with of without enabled pull up, doens't matter) on GPIO 0 the green led on my watchdog doens't blink anymore but stays on. So I don't think the problem is a pull up resisitor. If I disable thi...
by remko2000
29 Oct 2019, 20:33
Forum: ESP Easy: Hardware
Topic: Hardware watchdog
Replies: 14
Views: 6464

Re: Hardware watchdog

I'm a little further now. The watchdog now resets my wemos around 5 minutes if I don't connect de input to a GPIO. If I do connect to GPIO0 and use this code: On System#Boot Do Monitor,GPIO,0 TimerSet,1,1 EndOn On Rules#Timer=1 Do GPIOtoggle,0 TimerSet,1,1 EndOn I see a green LED pulse (heartbeat) o...
by remko2000
27 Oct 2019, 22:02
Forum: ESP Easy: Hardware
Topic: Hardware watchdog
Replies: 14
Views: 6464

Re: Hardware watchdog

I disable the rules but nothing happens. No red light/resetting of my watchdog after 5 minutes (the resttime of my watchdog). I add a second timer to set gpio 2 also low (toggle 1?). I'm a little but a newbie with rules so maybe I doing it wrong? This doesn't work. On System#Boot Do Monitor,GPIO,2 T...
by remko2000
27 Oct 2019, 20:23
Forum: ESP Easy: Hardware
Topic: Hardware watchdog
Replies: 14
Views: 6464

Re: Hardware watchdog

I've connect my watchdog and connect it with D4 (GPIO2). The output of the watchdog connected on the reset of my wemos. I uploaded the rule described by TD-er: On System#Boot Do Monitor,GPIO,2 TimerSet,1,1 EndOn On Rules#Timer=1 Do GPIOtoggle,2 TimerSet,1,1 EndOn the blue led on my wemos flashes eve...
by remko2000
27 Oct 2019, 14:07
Forum: ESP Easy: Hardware
Topic: Hardware watchdog
Replies: 14
Views: 6464

Re: Hardware watchdog

thx for your quick answer. I have immediately set the ' Connection Failure Threshold'. A good tip! So if I understand you correctly; the way I describe to connect the watchdog is correct ('in' on gpio2 and 'out' on reset). If I set the rule you described the wemos set the gpio2 if esp gets a undefin...
by remko2000
27 Oct 2019, 12:02
Forum: ESP Easy: Hardware
Topic: Hardware watchdog
Replies: 14
Views: 6464

Hardware watchdog

I've bought a hardware watchdog which I want to use with a wemos d1 and a temperature sensor I2C (GPIO 4 and 5).The intention is that my wemos reset if it crashes or lost his internetconnection. This is the watchdog: https://www.freetronics.com.au/pages/watchdog-timer-module-quickstart-guide#.XbVydy...
by remko2000
09 Oct 2019, 19:35
Forum: ESP Easy: Projects / Applications
Topic: K-Type / MAX6675 build in
Replies: 52
Views: 21756

Re: K-Type / MAX6675 build in

maybe a stupid question but I have a max31865 with a P100. Does this plugin also works with this breakout?
by remko2000
08 Oct 2019, 14:27
Forum: ESP Easy: Hardware
Topic: DHT22 with wemos D1
Replies: 3
Views: 5355

Re: DHT22 with wemos D1

thats more recent yes but I see no solution. The last build have problems with the dht22 too so what can I do?
by remko2000
06 Oct 2019, 19:58
Forum: ESP Easy: Hardware
Topic: DHT22 with wemos D1
Replies: 3
Views: 5355

DHT22 with wemos D1

I use a wemos D1 with a loose DHT22 to measure humidity. I connect the dht22 with a 10K resistance. Pin 3 (NC) is not connected. I use GPIO 14 for data. I also have tried different esp megabuilds. I also tried to power the dht22 with 5V and 3,3V. I nothing change to the part 'hardware' in esp. Every...
by remko2000
08 Mar 2019, 18:29
Forum: ESP Easy: Hardware
Topic: WeMos NodeMCU V3 with integrated chip
Replies: 1
Views: 607

WeMos NodeMCU V3 with integrated chip

Do someone know how to flash esp easy (mega-20181026) on this board: https://www.letscontrolit.com/wiki/index.php?title=File:NodeMCU-V3--integration-of-ESP8266-32M-Flash-USB-serial_640x640.jpg WeMos NodeMCU V3 with integrated chip: ESP8266 USB TTCH340 (ch340g) 32M Flash (4MB) Vin 4-9v (5V recommende...
by remko2000
09 Feb 2019, 16:00
Forum: ESP Easy: Hardware
Topic: Security panel K2000
Replies: 20
Views: 2842

Re: Security panel K2000

thx for your response. I checked ground; if I connect ground K2000 with ground Wemos the voltage no longer falls away (normaly a couple of seconds) when activate the NC-contact. So I tried a separate wall plug 5V3A. Even then nothing happens. As soon as I reconnect my wemos to my computer, I get a s...
by remko2000
09 Feb 2019, 11:31
Forum: ESP Easy: Hardware
Topic: Security panel K2000
Replies: 20
Views: 2842

Re: Security panel K2000

Yes! THX for the great help. The NC-contact do the job. I connect it with GROUND and my GPIO13 connected on the 12V. I use a LM1117 in between to convert the 12V to 3,3V (max V GPIO).This works great. I'm no stuggling with rules to set a timer. I want a delay of 30 secondes when I set my alarmin. A...
by remko2000
04 Feb 2019, 18:21
Forum: ESP Easy: Hardware
Topic: Security panel K2000
Replies: 20
Views: 2842

Re: Security panel K2000

I don't understand. I change my rule but still nothing happened. My rule is now: on belalarmin#state do if [belalarmin#state]=1.00 timerSet,1,30 // 30 second timer EndIf endon on Rules#Timer=1 do gpio,0,0 endon My switch is called ' belalarmin' If I push it I get in my log: 200525: SW : Switch state...
by remko2000
03 Feb 2019, 19:37
Forum: ESP Easy: Hardware
Topic: Security panel K2000
Replies: 20
Views: 2842

Re: Security panel K2000

thx I changed it to:
on alarmin#state do
if [alarmin#state]=1.00
timerSet,1,30 // 30 second timer
endon

on Rules#Timer=1 do
gpio,0,0
endif
endon
but no change. No response at all.
by remko2000
03 Feb 2019, 18:12
Forum: ESP Easy: Hardware
Topic: Security panel K2000
Replies: 20
Views: 2842

Re: Security panel K2000

Yes! THX for the great help. The NC-contact do the job. I connect it with GROUND and my GPIO13 connected on the 12V. I use a LM1117 in between to convert the 12V to 3,3V (max V GPIO).This works great. I'm no stuggling with rules to set a timer. I want a delay of 30 secondes when I set my alarmin. Af...
by remko2000
03 Feb 2019, 08:44
Forum: ESP Easy: Hardware
Topic: Security panel K2000
Replies: 20
Views: 2842

Re: Security panel K2000

Shardan wrote:
03 Feb 2019, 01:42
I've looked up some documentation.
Mostly that pin is called "Push/NO". I guess that means "Push button, normaly open".
Definitely that naming is a bit misleading.
So no other solutions to connect the wemos in your opinion?
by remko2000
02 Feb 2019, 23:59
Forum: ESP Easy: Hardware
Topic: Security panel K2000
Replies: 20
Views: 2842

Re: Security panel K2000

thx for helping me. Indeed, I think it's a pushbutton input. I came up with the idea because I have read that this panel works with a Fiabaro binary sensor. See this scheme: Image-1.png There the use the NO-contact. Maybe can I use an other contact? A relay also switches when I enter the code code. ...
by remko2000
02 Feb 2019, 22:16
Forum: ESP Easy: Hardware
Topic: Security panel K2000
Replies: 20
Views: 2842

Re: Security panel K2000

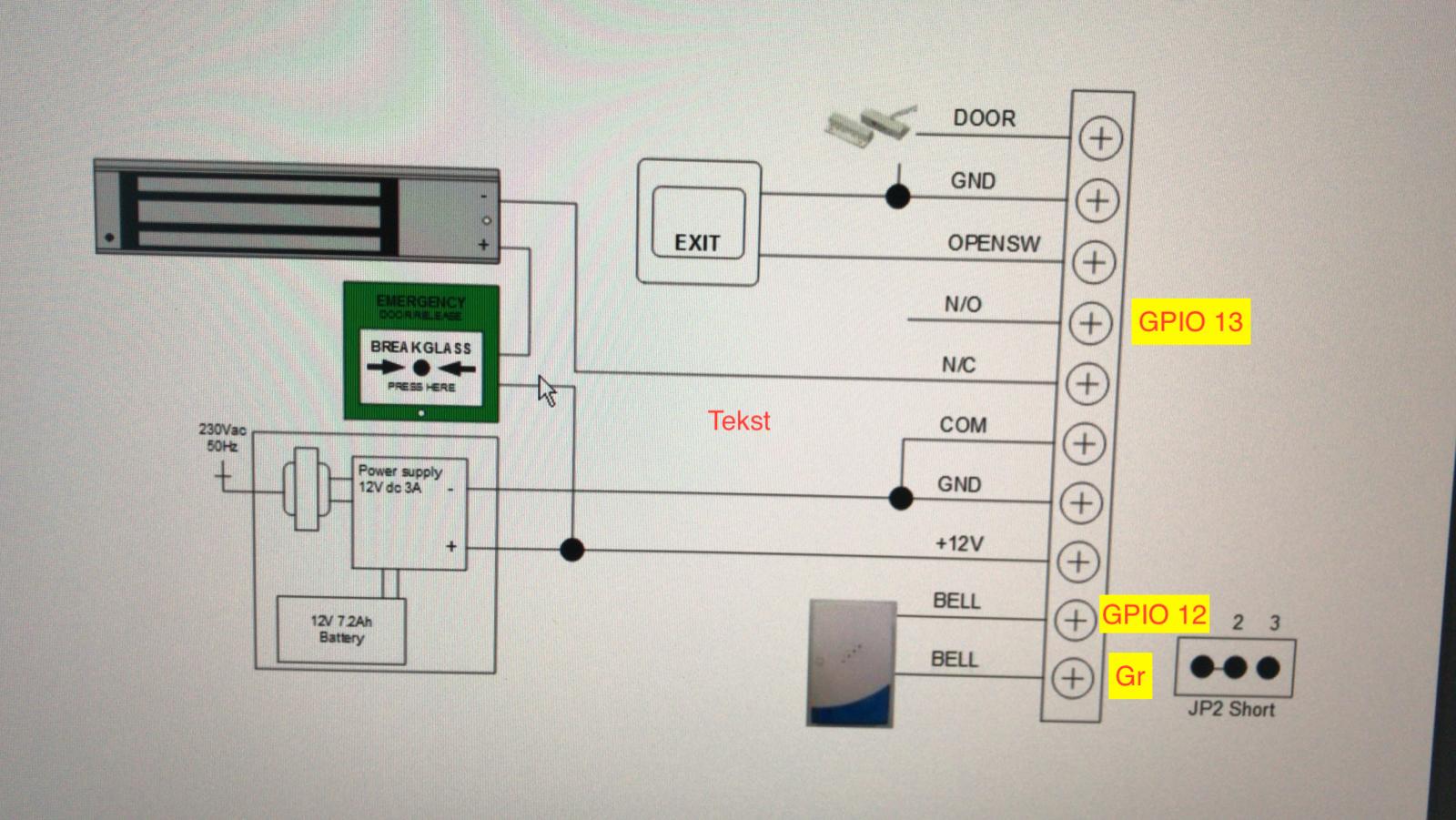

Maybe this picture explains more. I found it on internet. It's explains the possibilities of the K2000 panel and in yellow how I use the contacts now.
by remko2000
02 Feb 2019, 17:31
Forum: ESP Easy: Hardware
Topic: Security panel K2000
Replies: 20
Views: 2842

Re: Security panel K2000

How did you connect the "Bell" contacts. From GPIO to GND? In that case try a 10 KOhm resistor from GPIO to +3.3V and a capacitor of 47... 100 nF from GPIO to GND. The bell contacts I connect to GPIO and GND indeed. This contact gives a good stabile state 0 or 1 signal. The problem is the other NO ...
by remko2000
02 Feb 2019, 17:27
Forum: ESP Easy: Hardware
Topic: Security panel K2000
Replies: 20
Views: 2842

Re: Security panel K2000

grovkillen wrote:
02 Feb 2019, 16:21
Tried debounced?
yes but that doesn't help.
by remko2000
02 Feb 2019, 16:13
Forum: ESP Easy: Hardware
Topic: Security panel K2000
Replies: 20
Views: 2842

Security panel K2000

I've bought a K2000 security keypad and connect it with a Wemos D1 with ES Easy (build mega-20181026). 7360c700-890b-4533-9900-ba57adeeac81.JPG I connect the two "BEL' contacts of the panel to Ground and GPIO12 of my wemos. With this switchinput I want to set my alarm ' IN'.This works fine. The cont...
by remko2000
26 Jan 2019, 16:32
Forum: ESP Easy: Software
Topic: Wemos with pt100/max31865
Replies: 5
Views: 2700

Re: Wemos with pt100/max31865

Thanx for the link. I have tried to rewrite my script witg inspiration of the example: #include <ESP8266WiFi.h> #include <ESP8266HTTPClient.h> #include <Adafruit_MAX31865.h> const char* ssid = "xxx"; const char* password = "xxxxx"; const char* host = "10.0.1.32"; const int port = 8080; const int wat...
by remko2000
25 Jan 2019, 18:51
Forum: ESP Easy: Software
Topic: Wemos with pt100/max31865
Replies: 5
Views: 2700

Re: Wemos with pt100/max31865

Yes thats right. I want to mix 2 examples of code in one script. Maybe that's not a good approach. All I want is the temperature in my seriel monitor send to domoticz. The code below is working for me. Next step is to send the value to IDX 4732 in domoticz instead of the seriel monitor but I don't k...
by remko2000
24 Jan 2019, 16:50
Forum: ESP Easy: Software
Topic: Wemos with pt100/max31865
Replies: 5
Views: 2700

Re: Wemos with pt100/max31865

If tried to make a script. I combined my working max31865 script with a temperaturescript: /*************************************************** This is a library for the Adafruit PT100/P1000 RTD Sensor w/MAX31865 Designed specifically to work with the Adafruit RTD Sensor ----> https://www.adafruit.c...
by remko2000
13 Jan 2019, 12:15
Forum: ESP Easy: Software
Topic: Wemos with pt100/max31865
Replies: 5
Views: 2700

Wemos with pt100/max31865

I have connected a PT100 with MAX31865 to my wemos d1. I have uploaded this script via the arduino ide. /*************************************************** This is a library for the Adafruit PT100/P1000 RTD Sensor w/MAX31865 Designed specifically to work with the Adafruit RTD Sensor ----> https://w...
by remko2000
09 Dec 2018, 11:48
Forum: ESP Easy: Projects / Applications
Topic: AXA Remote 2.0 and ESP Easy
Replies: 24
Views: 13109

Re: AXA Remote 2.0 and ESP Easy

Finally I make progress with my axa remote 2.0 which I want to control with domoticz. I bought a linbus converter on superhouse: https://www.google.nl/url?sa=t&rct=j&q=&esrc=s&source=web&cd=4&cad=rja&uact=8&ved=2ahUKEwjbup_lyJDfAhVGKuwKHQbdDloQFjADegQIBBAB&url=https%3A%2F%2Fwww.superhouse.tv%2F22-li...
by remko2000
09 Dec 2018, 11:44
Forum: ESP Easy: Projects / Applications
Topic: Axa remote 2 with esp easy
Replies: 0
Views: 540

Axa remote 2 with esp easy

Finally I make progress with my axa remote 2.0 which I want to control with domoticz. I bought a linbus converter on superhouse: https://www.google.nl/url?sa=t&rct=j&q=&esrc=s&source=web&cd=4&cad=rja&uact=8&ved=2ahUKEwjbup_lyJDfAhVGKuwKHQbdDloQFjADegQIBBAB&url=https%3A%2F%2Fwww.superhouse.tv%2F22-li...
by remko2000
08 Apr 2018, 16:18
Forum: ESP Easy: Hardware
Topic: Paper-mail with email project
Replies: 17
Views: 3316

Re: Paper-mail with email project

That is a good plan B but this should also be able to work properly? A magnetic switch I can put in the lid of my mailbox, a touchswitch not I am afraid.
by remko2000
08 Apr 2018, 16:07
Forum: ESP Easy: Hardware
Topic: Paper-mail with email project
Replies: 17
Views: 3316

Re: Paper-mail with email project

I have adjusted the delay to 100 but no change. This seems to be a setting for the speed of sending message. My problem is different. It seems that the magnetic microswitch that needs a certain amount of time to be able to perceive that it is ' open' . I use this switches: https://nl.aliexpress.com/...
by remko2000
08 Apr 2018, 10:21
Forum: ESP Easy: Hardware
Topic: Paper-mail with email project
Replies: 17
Views: 3316

Paper-mail with email project

I have completed the mailbox project https://www.letscontrolit.com/wiki/index.php/EasyNotifications and that works. However, I notice that when the mailbox is opened and closed quickly, the miniwemos D1 (ESP Easy version v2.0.0-dev12) does not reset and therefore does not give a message. If the mail...
by remko2000
12 Mar 2018, 15:32
Forum: ESP Easy: Software
Topic: Notification Settings
Replies: 2
Views: 1035

Notification Settings

I try to receive notifications (I follow this project: https://www.letscontrolit.com/wiki/index.php/EasyNotifications) from my esp Wemons mini. I have ziggo as a provider. However, I can not set a password and the like, only domain and server. If I only receive that form I will unfortunately receive...
by remko2000
23 Feb 2018, 10:18
Forum: ESP Easy: Hardware
Topic: Sonoff basic with wall switch
Replies: 23
Views: 8954

Re: Sonoff basic with wall switch

After some googling, I found out that a 10K resistance between GPIO14 and 3.3V could help. I have tried this and indeed it works perfectly now. Code is also correct. I can switch my lamp both with my wall switch and via domiticz and the status is perefect kept in domoticz.
by remko2000
20 Feb 2018, 21:48
Forum: ESP Easy: Hardware
Topic: Sonoff basic with wall switch
Replies: 23
Views: 8954

Re: Sonoff basic with wall switch

I have finally been able to flash the latest build (v2.0-20180220) on my sonoff basic. Now I can continue with the actual problem. If I want to switch my sonoff the signal seems to be pingpong so the sonoff switches on and off several times. What have I done now: I have 1 virtual switch in domoticz ...
by remko2000
18 Feb 2018, 19:07
Forum: ESP Easy: Hardware
Topic: Sonoff basic with wall switch
Replies: 23
Views: 8954

Re: Sonoff basic with wall switch

No I think it is a normal 8266 chip, my terminal says:

Code: Select all

Chip is ESP8266EX
when I try to flash it with a prebuild 8285 version.
by remko2000
18 Feb 2018, 16:03
Forum: ESP Easy: Hardware
Topic: Sonoff basic with wall switch
Replies: 23
Views: 8954

Re: Sonoff basic with wall switch

I tried this with my terminal: sudo python esptool.py --baud 115200 --port /dev/tty.SLAB_USBtoUART write_flash -fm dout 0x00000 ~/Downloads/ESP_Easy_v2.0-20180218_dev_ESP8266_1024.bin The flash has succeeded but no esp_0. Because I have previously experienced this I read a tip that I can solve this ...
by remko2000
18 Feb 2018, 13:52
Forum: ESP Easy: Hardware
Topic: Sonof flash with mac
Replies: 0
Views: 797

Sonof flash with mac

It takes me the hole morning tot update my sonoff basic with the newest ESPsoftware and no succes. All the different versions maks me crazy. I used Aduino IDE 1.8.4 ESP Release v2.0-20180218 A Sonoff Basic (recent) Board: ESP8266 version 2.3.0 (when I update this to latest 2.4.0. I get a message tha...
by remko2000
18 Feb 2018, 12:59
Forum: ESP Easy: Hardware
Topic: Sonoff basic with wall switch
Replies: 23
Views: 8954

Re: Sonoff basic with wall switch

Or right. It takes me the hole morning tot update the sonoff with the newest espsoftware and no succes. All the different versions maks me crazy. I used Aduino IDE 1.8.4 (also tried 1.8.5) ESP Release v2.0-20180218 (latest) A Sonoff Basic (recent) Board: ESP8266 version 2.3.0 (when I update this to ...
by remko2000
18 Feb 2018, 10:26
Forum: ESP Easy: Hardware
Topic: Sonoff basic with wall switch
Replies: 23
Views: 8954

Re: Sonoff basic with wall switch

I used the Arduino IDE (1.8.5) to flash my Sonoff. ReleaseNotes of my ESP-software: // Rxxx 02-12-2016 EasyMega build (experimental) // Native SPIFFS support, old custom flash routines removed // Support OTA up to 1.5MB sketch size (change to 1M SPIFFS model) on 4M modules // Fallback Wifi AP suppor...
by remko2000
17 Feb 2018, 22:49
Forum: ESP Easy: Hardware
Topic: Sonoff basic with wall switch
Replies: 23
Views: 8954

Re: Sonoff basic with wall switch

Config:
by remko2000
17 Feb 2018, 20:07
Forum: ESP Easy: Hardware
Topic: Sonoff basic with wall switch
Replies: 23
Views: 8954

Re: Sonoff basic with wall switch

It' s version 2.0.
Both switches are normal switches:

When I use the domoticzswitch I hear switch the sonoffrelay but not one time but a couple of times.
by remko2000
17 Feb 2018, 18:27
Forum: ESP Easy: Hardware
Topic: Sonoff basic with wall switch
Replies: 23
Views: 8954

Re: Sonoff basic with wall switch

This is my main page (build 2-2): https://imageshack.com/a/img924/8620/NRD9ic.png Devices: https://imageshack.com/a/img922/2986/0JCmgN.png Rules: on lamp_on do gpio,12,1 gpio,13,0 endon on lamp_off do gpio,12,0 gpio,13,1 endon on lamp_change do if [rele#Switch]=1 event,lamp_off SendToHTTP 10.0.1.32,...
by remko2000
17 Feb 2018, 12:25
Forum: ESP Easy: Hardware
Topic: Sonoff basic with wall switch
Replies: 23
Views: 8954

Re: Sonoff basic with wall switch

I tried your script Vader and use one device SW01 in the GUI ESP but this doesnt work. The domoticz switch doesnt work at all and the wallswitch works sometimes.
by remko2000
17 Feb 2018, 11:12
Forum: ESP Easy: Hardware
Topic: Sonoff basic with wall switch
Replies: 23
Views: 8954

Re: Sonoff basic with wall switch

Or right thanx for your reaction. I tried this script. What have I done: In de GUI ESP easy I submit two task under 'devices' of my sonoff: 1 switch GPIO12, IDX 1266, called 'rele' ' and 1 switch GPIO14, IDX 1, called ' SW01' In Domoticx I submit a virtual switch with IDX1266. Now I used the script ...
by remko2000
16 Feb 2018, 16:06
Forum: ESP Easy: Hardware
Topic: Sonoff basic with wall switch
Replies: 23
Views: 8954

Sonoff basic with wall switch

I want to controll my sonoff with esp easy 2.2 also control with my wall switch witch gpio14. So i connect it with gpio14 and ground and submit a switch on port gpio14 in the espeasy GUI. Nothing happened when i flip the hardwareswitch. What am I doing wrong?
by remko2000
16 Feb 2018, 15:58
Forum: ESP Easy: General Discussion
Topic: Wemos D1 mini sleeps without sleepmode?
Replies: 6
Views: 1695

Re: Wemos D1 mini sleeps without sleepmode?

Solved. After a hardreset of the wemos it works!
