Let's Control It

pppp33

You're right Td-Er, perhaps it's better a 4-way box and 4 opto relays, but the problem is AFAIK there's no engineered product, with CE mark, etc.
So you can't use it in a typical office environment.
Is somebody aware of some flashable din-rail box ?
Thanks & Regards
Paolo

pppp33

Hello there, I am in Italy and I want to set up a little switching system for lights. The ideal way is to use DIN Rail switch, like this one, EARU_DIN.jpg but I have no notice of re-flashable ones. Is any european friend aware of a re-flashable DIN Device ? Sonoff + DIN Adapter is not an option beca...

pppp33

Thanks for sharing !
Usually they say "NO WAY" and we don't even try to go beyond specs.....

pppp33

Hi, it's not code, but the configuration of LEDs in Espeasy LED page configurations.
You have to deactivate LEDs status on the pin used for neopixel.
Regards
Paolo

pppp33

thanx for your answer, Prutsium !

pppp33

Thanks to @Kinot for the reminder (actually I forgot about it

)
Thanks to @prutsium for the fast, detailed & clear answer.

But, this way you don't use MQTT as the general I/O platform to know the state of variables and switch on/off commands, do you ?

Thanks & Regards
Paolo

pppp33

hello there,
@Prutsium: I saw the dashboard: GREAT Job !

But, how do you inject directly data from ESPEasy's MQTT into Influx, without using NodeRed ?

Thanks
Paolo

pppp33

Hello there, here it is a little hint to connect Sonoff Basic R2 (without spare GPIO's) to DHT 22 "the easy way" 1. I prepared hw by soldering 4 pins header on the board. 1. I flashed the last EspEasy, for 1 MB boards, with usb-to-serial adapter 2. I set up and DISABLE serial port 3. I con...

pppp33

hello there, To build a human presence sensor, I just set up a radar switch (the typical RCWL-0516 board you find in aliexpress), with 3 min histeresys (delay before it considers the room unhabitated), but discovered that often it doesn't detect presence if I'm quite stationary on my seat, since the...

pppp33

Actually I need to switch a 24 Vac solenoid valve, so I need: 220 Vac power (for esp board) and dry contact from the relay to switch 24Vac.
Which Sonoff module does this ?
Thx
Paolo

pppp33

Hello there, I am looking for a small, single channel relay board, possibly self-powered. On Aliexpress i found this one: https://www.aliexpress.com/item/HOT-220V-Wifi-Relay-Switch-Remote-Control-Smart-Home-ESP8266-Relay-Module/32871873560.html?spm=2114.search0204.8.9.6e2e4dc7Mar6Lo Immagine.png Now...

pppp33

....and this is the "sad" one....

pppp33

This is a (ugly) picture of the idea: happy, sad, etc.....
I made it with a (long) sequence of commands like this:

curl http://192.168.1.163/control?cmd=neopixel,124,100,100,0
....
....

but we need something more "human"

regards
Paolo

pppp33

Yes, that's it ! I chose black background. Just an addition: i combined BASIC Neopixel AND Neopixel CLOCK plugins, so I can lit up a static pattern (starting at led 61, for example the center LED) AND HMS leds on the outer ring..... Next step could be fun to have faces/emoji on the disk.... :D But w...

pppp33

Solved !
I used the same pin for wifi status led and Neopixel output !
Thanx TDer for support !
Regards....
Paolo
p.s. I'm also checking neopixel clock (plugin070) and it's running fine for now....

pppp33

Hello TDer, I did some more testing, and: - no visible difference between RGB and RGBW - led 1 is locked to 100% green - if I power off the disc, led 1 stays off until first command - If I issue something like: http://192.168.1.163/control?cmd=neopixel,1,0,0,0,0,0,0 with some more zeroes, :) I get n...

pppp33

Hi there, me too with NeoPixel ! I didn't resist and bout the entire 241-led disk (see photo) photo1.jpg I connected them in the correct order and got basic Neopixel work. Now, the strange thing. After i send the "on" command to first LED with (as an example): http://192.168.1.163/control?...

pppp33

Hi there, I've got a PZEM an tried to compile, but got same "multiple definition" error, as miki_tnt : .pioenvs\test_ESP8266_4096\lib46c\ESPEasySoftwareSerial\SoftwareSerial.cpp.o: In function `sws_isr_0()': SoftwareSerial.cpp:(.iram.text+0xd0): multiple definition of `sws_isr_0()' .pioenv...

pppp33

Hello,
Latest update:
if you reduce sample time (I used 120 sec.), you get slightly better results, especially in terms of VOC: it passed from about 45 to 25 (same conditions).
Humidity is about +8 points (66% instead of 58%)....

Regards
Paolo

pppp33

Hello, thanx to all of you for info & support.....
Actually, the only surely wrong value is humi....
Temp & Baro are ok.
VOC is quite difficult to evaluate....
Am I the only that gets humi wrong only ?
If yes, it could be my sensor broken.....

Regards
Paolo

pppp33

Hello bme680 users, I bought aliexpress version (purple, about 15$), loadef P119, compiled and run. In my test set (DHT22, DS18B20, BME680) Temperature and pressure are quite Ok: difference is +/- 0.2-0.5°C But Humidity measured by BME680 is about +10 points higher than DHT22 value: 71.4% vs. 61.5% ...

pppp33

great idea, Lisa !

pppp33

.....AAAargh....it's in Dutch.....Let me find something in english......and I'll be back.....

pppp33

Hi Lisa,
now we have esp32 boards with LORA and NB-IOT.
Do you think we can setup a common interface layer, i.e. something to support TCP/IP, so we can use MQTT from anywhere ?
Or they're only serial, point-2-point simple protocols ?
Thanx for the great work you're sharing.....
Paolo

pppp33

thx a lot, Lisa.
I'll check asap.
Regards
Paolo

pppp33

Hi Lisa, Thank you for the great work..... I am trying to set up upyeasy on the TTGO board (ESP32+display+battery): I get this message at startup: rst:0x10 (RTCWDT_RTC_RESET),boot:0x17 (SPI_FAST_FLASH_BOOT) configsip: 0, SPIWP:0xee clk_drv:0x00,q_drv:0x00,d_drv:0x00,cs0_drv:0x00,hd_drv:0x00,wp_drv:0...

pppp33

About RSSI strenght: is it actually enabled in the framed oled display ?
thanx & regards.
paolo

pppp33

thanks for the info !
Here @espeasy You never stop learning...

paolo

pppp33

hello,
I'm just curious: Why ?
more current ?
Anyway, I'd not short 2 pins that could be set as output and be in opposite states.....
If you have to, use diodes to avoid shorts

paolo

pppp33

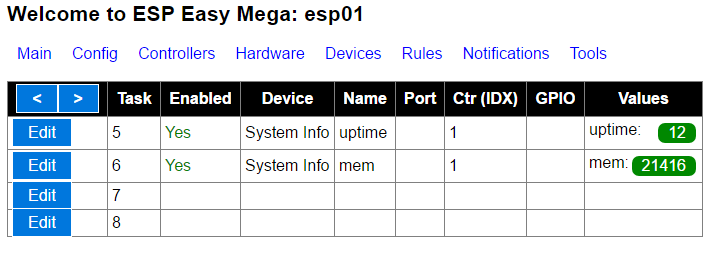

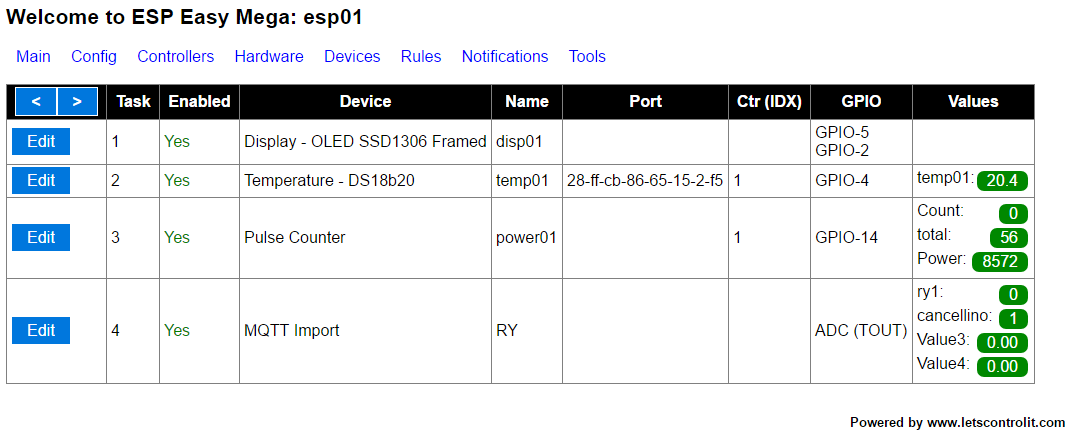

Actually, this unit is running some jobs: see pics:

: Cattura.PNG (47.43 KiB) Viewed 11994 times

: Cattura2.PNG (22.88 KiB) Viewed 11994 times

pppp33

Hi Shardan, thx for fast repsonse 1. I downloaded the bin and i'll check ASAP 2. I used this same unit with 147 and 148 and it was fine: I already know it for sure.... 3. The rebooting unit is a nodemcu, but it's the same that worked fine with 147-148 4. The esp01 is only used to compare behaviour: ...

pppp33

Hi there, thanx for yr support.... Here are first answers: 1. I downloaded the updated version 2.0.0-dev8 from github in my atom/platformio, compiled with no error and used normal_4096 binaries 2. pulse counter is on GPIO-14 3. memory is between 20k and 21k: see right part of attached graph, just st...

pppp33

Hi there, I'm experiencing unwanted reboot with pulse counter enabled. I've set up mqtt controller cloudmqtt.com, pulse counter with 10 sec delay. I get 20-60 minutes of operation, then a reboot. If i don't enable pulse counter, i don't have these reboots. Anyone else is having this problem ? regard...

pppp33

Hi,
have u considered MQTT ?
If u have NR running, u can easily setup a mosquitto broker in the same machine, then use MQTT pubs in NR and Mqtt import in Espeasy.....
Regards
Paolo

pppp33

Hi there,
while definitely solved the reboot issue, with uptime of days, now (with 2.0.0-dev8) I can't read my pulse counter (that worked in dev7)
Am I the only one ?
Thx & regards
Paolo

pppp33

thx psy0rz !
And thx to all developers !
Paolo

pppp33

Hi Martinus,
I'm sad to see the news...
I want to thank you for the GREAT work, both on the tech and HUMAN standpoints.....
I wish you all the best for yr life.....
regards
paolo

pppp33

Hi there,
It uses HLW8012 for power measurement....Anyboby did hear about it ?
regards
paolo

pppp33

hi there, I am experiencing an annoying problem with ouput and connected relays: at bootup i see a short pulse on output, at least on gpio14 and 16, so relays close for a moment: this is unwanted and a potential problem..... Am I the only one experiencing this ? Has somebody got any workarounds and/...

pppp33

Martinus wrote: .....
1) Support for FHEM has been added, but can't test this in my testlab.
.....

Hi Martinus,
I've just got an fhem setup....
Can u give some more detail on FHEM-side configuration ?
You have to define items in FHEM....

Is it an http connection ?

thanks & regards
Paolo

pppp33

YOU ARE TERRIFIC !

great work !
Thanx for sharing.....
paolo

pppp33

I think it's "by design": MQtt Brokers/Clients don't manage total or time coming from espeasy, but calculate their own values.....
regards
paolo

pppp33

Hi there,
this is a simple schematics of IO:
Pls. note:
- S1 is the switch to clear Flash memory
- J1 is the I2C conn to optional Oled display

: schematics_01.png (50.24 KiB) Viewed 20195 times

Regards
Paolo

pppp33

@lunarok: sorry for delay...busy at work
yes, mp is OK
regards
paolo

pppp33

@lunarok: it's already a 4X Opto-Inputs + 2X relays output (you can use opto inputs as switches or counters)
pls can you give some more details about dimmer+input ? You mean PWM ?
regards
paolo

pppp33

hi,
@MiKa1975: we're preparing a simple schematic
@Dylantje: it's a standard DIN Box 4U, no need to print it in 3D
we'll sell the complete device with or without oled display option
regards

pppp33

Thnx for yr interest.
@nietgiftig: The sample is running well, even with a -91db wifi strenght (box closed).
I'll be back asap with more info.....
Regards
Paolo

pppp33

Hi there, We just finished first protos of our box for NodeMCU and Oled Display.Main feature are: - Din Rail enclosure (4U) - Internal power supply (240Vac) - 4 optocoupled inputs (Pulse counters S0 or Thermo DHT/18B20) - 2 Relays 16A with NC, NO - Optional Oled Display board If somebody is interest...

pppp33

I think you have to call your sensor "DHT", since you referenced so in the display line

pppp33

hi Dave, I found that the system goes into AP mode after some retries to connect, but not in wizard mode. Is it correct ? About "how to" enter re-initialize modes, afaik, if u short uart tx to rx, u get into factory reset mode..... Is it right ? If this is the case, i think it's a little t...
